65 Inch Smart Interactive Whiteboard Deephub Meeting Online Conferencerealtime Collaboration Function.

Product Description

Overview In today's business scenario, online cloud meetings have become an important part of information transmission and cooperation. Whether it is internal business discussions, external negotiations, or training, we need a set of efficient and convenient business meeting programs. This year, DeepHub has brought a complete set of business meeting solutions for customers, focusing on meeting whiteboards and matching meeting software and meeting accessories. 48MP AI Flip Camera with Digital Zoom Auto Framing
DeepHub automatically adjusts to the optimal angle based on the number of participants and their position.
Voice Tracking
DeepHub always keeps the speaker in the center of the image by locating the source of the sound detected by the microphone

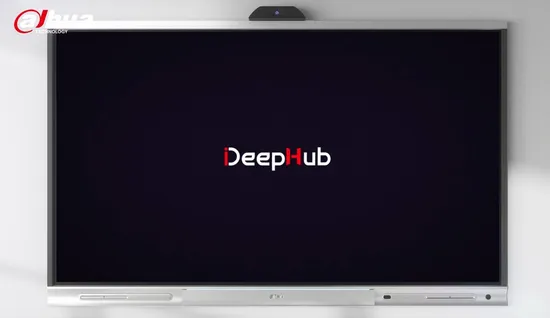

LPH65-MC470-P-S2 65 inch Smart Interactive Whiteboard
> Built-in Deephub Meeting Software for cloud base online conference and with Realtime collaboration function.
> Displays in 4K Ultra HD and uses 4K UI.
> With its 2 built-in mid-high frequency speakers, and 1 low-frequency speaker, the device supports 2.1-channel audio output. The total power is 60 W.
> Produces vibrant visuals through its high color coverage (90% NTSC High Gamut Screen) and accurate color reproduction (ΔE≤1.5).
> Features split screen, and performs screen sharing between the whiteboard and phones, computers, tablets and more devices.
> Microsoft Office and other related software can be installed, and it can play audio and video files in various formats.
> Offers a smooth writing experience through handwriting recognition, pen writing, the fast writing response speed, and pen pressure recognition for a real writing experience.
> Support AI recognition of text and drawings.
> Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted.
> Built-in AI 48M camera and 8 array microphone that produces excellent quality visual and audio communication. Supports auto-framing and voice tracking.
> Features sound source positioning.
> NFC and Fingerprint unlock for protection of user information.
> Includes a full-featured Type-C IN port and supports charging through USB PD up to 65 W.

Built-in System

Operating System

Android 11.0

CPU

Quad-core A73 + Quad-core A53

CPU Frequency

2.2 GHz + 2.0 GHz

GPU

ARM Mali-G52 MP8 (8EE)

RAM

12 GB (System: 8 GB, Camera: 4 GB)

ROM

128 GB

Card Swiping with NFC

Yes, Bind up to 10 cards

Function

Operating System of External Module

Windows 7/8/10

Wi-Fi Hotspot

Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time

LCD Panel

Panel Dimensions

65 inch

Backlight

DLED

Aspect Ratio

16:9

Brightness

350 cd/m² (typ.)

Resolution

3840 (H) × 2160 (V)

Viewing Angle

H: 178°; V: 178°

Lifespan

≥50, 000 h

Display Color

90% NTSC (typ.)

Refresh Rate

60 Hz

Static Contrast

VA: 4000 (typ.); IPS: 1200 (typ.)

Response Time

8 ms (typ.)

Camera

Pixel

48 MP

Auto Control

Auto flip; Auto white balance

Distortion

-8.6%

Max. Resolution

3840 (H) × 2160 (V)

Storage

8GB eMMC

Field of View

D: 99°; H: 87°; V: 49

Face Detection

Yes

Device Ports

Light Sensor

1

Front Button

1 × power button (right side)

Front Ports

1 × USB 3.0 (left side)

Network Port

1 × RJ-45

Wi-Fi

Yes, 1 × Station, 1 × AP

Wi-Fi Standard

Station: 802.11b/g/n/a/ac AP: 802.11b/g/n/a/ac/ax

Wi-Fi Frequency Range

2400-2483.5 MHz, 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz

MAX Power Transmission (Wi-Fi)

≤20 dBm@2400-2483.5 MHz; ≤23 dBm@5150-5250 MHz; ≤20 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz

Bluetooth

Yes

Bluetooth Standard

BR/EDR/BLE, BT5.2

Bluetooth Frequency Range

2400-2483.5 MHz

MAX Power Transmission (Bluetooth)

≤20 dBm@2400-2483.5 MHz

RFID Modulation Method

ASK

RFID Frequency Range

13.56 MHz

MAX Power Transmission (RFID)

42 dBuA/m @10m

USB

3 × USB 3.0 (type A); 1 × Micro USB2.0

RS-232

1 × DB9 interface, male connector

Video Input

2 × HDMI 2.0 (4K@60Hz)

Video Output

1 × HDMI 2.0 (4K@60Hz)

Audio Output

1 × 3.5 mm Line Out interface; 1 × SPDIF interface

Others

1 × Touch interface

IrDA

1

Microphone

8 Array

Type-C Port

1× Type-C IN (DP IN (4K60fps)+USB3.0 HOST+USB 2.0 Device (touch)+PD 65 W)

Touchscreen

Response Time

≤10 ms

Touch Technology

Infrared touch technology

Touch Points

31@Android, 50@windows

Valid Touch

1.5 mm (0.06") (over 90% touch area)

Writing Mode

Finger + Pen (attaches magnetically)

Anti-light Interference

Anti-dazzle tempered glass

Surface Hardness

≥9 H

Touch Resolution

32767 × 32767

Number of Multi-user Writing Points

10 (over 90% touch area)

Speaker

Number of Cavities

3

Frequency

150 Hz-20 kHz

Power

2.1 Channel, front full-range 2 × 20 W + rear subwoofer 20 W

Built-in Speaker

3

Fingerprint

Fingerprint Capacity

100

Fingerprint Resolution

160 × 160

FAR

<0.001%

Microphone

Pick-up Distance

Far-field sound pickup: 8 m-12 m (26.25 ft-39.37 ft)

Number of Microphones

8 Array

AGC

Yes

Echo Cancellation

Yes

Polar Pattern

Omnidirectional

Intelligent Noise Filtering

YES

General

Power Supply

100-240 VAC, 50/60 Hz

Power Consumption

Basic power consumption: 221 W, Max. Power consumption: 300 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Operating Humidity

10%-90% (RH), non-condensing

Storage Humidity

10%-90% (RH), non-condensing

Product Material

Metal casing

Protective Glass

3.2 mm Anti-dazzle tempered glass

Casing Color (Frame/Rear)

Black on the left and right, silver on the top and bottom.

Product Dimensions

1485 mm × 93.1 mm × 968.5 mm (58.46" × 3.67" × 38.13") (L × W × H)

Frame Size

Top border: 26.1 mm, left and right borders: 15.4 mm, bottom border: 66.6 mm

Packaging Dimensions

1590 mm × 262 mm × 1056 mm (62.60" × 10.31" × 41.57") (L × W × H)

Net Weight

43 kg (94.80 lb)

Gross Weight

52.7 kg (116.18 lb)

Holes Distance

500 mm × 400 mm (19.69" × 15.75")

Installation

Wall mount; mobile bracket

Standby Power Consumption

≤0.5 W

Packing List

1 × Smart interactive whiteboard; 1 × Power cord; 2 × Stylus pen; 1 × Quick start guide; 1 × Wall mount bracket; 1 × Accessory package; 1 × Remote control

---
