Product Details
Product Description
Product Description

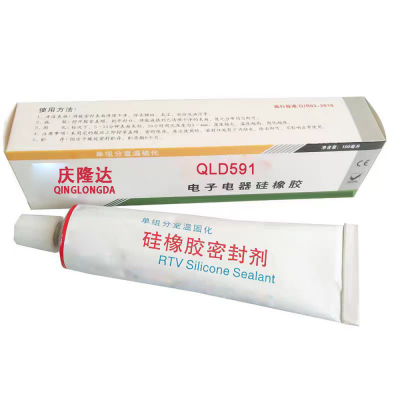

One-part silicone potting compound is room temperature curing neutral silicone material, low viscosity, self-leveling, cured elastomer. Resistant to high and low temperatures, with excellent aging resistance, flexibility, insulation, moisture, shock, corona resistance and resistance to leakage. Suitable for small or thin layers (potting thickness less than 7MM) of electronic components, circuit boards, sensors, relays and other potting protection.
QLD592T Silicone Rubber Sealant
Deoxime type, transparent, potting of various electronic components.
QLD592B Silicone Rubber Sealant
Deoxime type, black color, potting of electronic components such as light emitting diodes.
QLD592W Silicone Rubber Sealant
Deoxime type, white colour, potting of electronic components such as electrical modules.
QLD582 Silicone Rubber Sealant
Dehydrated, transparent, non-corrosive to polycarbonate (PC), copper and other materials, potting of various electronic components.
Performance indicators
Performance indicators
| QLD592T
| QLD592B
| QLD592W
| QLD592
|
Appearances
| Transparent Fluid
| Black fluid
| White fluid
| By choice
|
Densities（g/mm3，）
| 1.0
| 1.1
| 1.1
| 1.0
|
Viscosity（pa.s）
| 6~10
| 8~15
| 8~15
| 6~10
|
Surface drying time (min)
| 10~30
| 10~30
| 10~30
| 5~20
|
Tensile strength (MPa)
| 0.8
| 1.0
| 1.0
| 0.7
|
Elongation (%)
| 200~300
| 200~300
| 200~300
| 150~200
|
Hardness (shore A)
| 20~30
| 20~30
| 20~30
| 15~25
|
Shearing strength (MPa)
| ≥0.5
| ≥0.5
| ≥0.5
| ≥0.5
|
Dielectric strength (kv/mm)
| ≥20
| ≥20
| ≥20
| ≥20
|
Loss factor (1.2MHz)
| 0.001
| 0.001
| 0.001
| 0.001
|
Volume resistance (Ω·cm，25℃)
| 1.0×1015
|
Working temperature range (℃)
| -60~250
| -60~250
| -60~250
| -60~250
|
Wire shrinkage (%)
| 0.3
| 0.3
| 0.3
| 0.3
|
Operation process
1. Clean the surface: the surface of the potting object will be clean, remove rust, dust, moisture and oil.
2. Sizing: unscrew the hose cap, and prick open the sealing mouth, the glue will be squeezed to the surface has been cleaned up, so that the natural leveling.
3. Curing: the glue absorbs moisture in the air, the surface begins to solidify, gradually to the deep curing, in 24 hours (room temperature and 60% relative humidity) within the curing depth of 3 ~ 4mm.
4. Summer temperature is high, high humidity, curing will be faster; winter temperature is low, low humidity, curing will be slower.
Notes
Silicone rubber absorbs moisture and cures, unused rubber should be sealed and stored. Sealed storage in a cool dry place, storage period of 9 months.
>>
