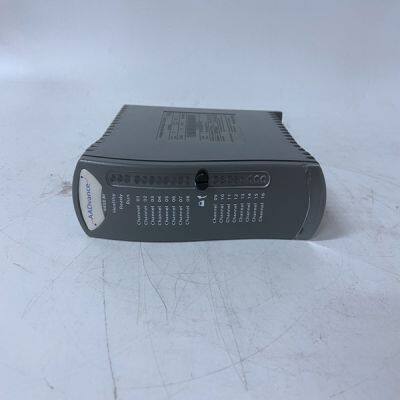

ICS TRIPLEX T9432

Product Details

Product Description

Product Description
Brand: ICS TRIPLEX
Type:T9432
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
For technical data on PM865 and TP830, see Table 60 on page 260. Table 60. PM865 and TP830 – Technical data Item Value Memory • 4 MB flash PROM (firmware storage). • 32 MB of SDRAM. Power Dissipation 6.9 W typical 11.9 W typical (incl. full supply to ModuleBus and CEX-Bus, see Appendix B, Power Consumption). Current Consumption 287 mA typical (487 mA max.) (excl. supply of ModuleBus and CEX-Bus, see Appendix B, Power Consumption). Power Input Connector Four pin, screw connector L+, L–, SA and SB. Power Supply Requirements Inputs designated L+ and L– 24 V nominal, variation between 19.2 V DC and 30 V DC. Redundant Power Supply Status Inputs Inputs designated SA, SB • Max input voltage 30 V • Min. input voltage for high level 15 V • Max input voltage for low level 8 V These inputs are status inputs. The threshold levels are logical "0" or "1" input limits, not power fail limits. Power Reservoir The processor unit has an internal 5ms power reservoir, sufficient for the CPU to make a controlled power down. Protection Rating IP20 according to EN60529, IEC 529.
Communication Ports and Interfaces Technical data for communication ports and interfaces is described in Table 49 on page 241. Battery The memory content is backed up with either an internal or external battery unit (SB821). For back-up time see Table 61 on page 261. Table 51 on page 243 shows internal battery data. For external battery data, see SB821 External Battery – AC 800M Memory Back-up on page 392 and SB822 Rechargeable External Battery – AC 800M Memory Back-up on page 394. Weight • 1200 g (2.6 lb) (package PM865K01). • 2800 g (6.1 lb) (package PM865K02). Dimensions W 119 x H 186 x D 135 mm (4.7 x 7.3 x 5.3 in) Width is measured along the DIN-rail, depth from the wall, and height vertically, including lock mechanism. The figures in Table 61 on page 261 are valid if the batteries have been installed after a normal CPU power-up, allowing for the memory back-up function to be activated. Table 61. Back-up times for PM865 Source Back-up time Internal battery Minimum 235 hours External battery SB821 Minimum 24 weeks External battery SB822 Note: Recharge time for an empty battery is approximately 7 hours. Minimum 3 weeks when fully charged

---
