Manufacturer Cheap Price CE Approved Hydraulic Manual Grinder Machine Surface Grinding Machine with Factory 618 1224 1230 4080 Sp2502

Product Description

Product Description
Factory Direct Sale Low Cost Cheap Price CE Good Quality Surface Grinder SP2502 Manual Grinding Machine Manufacturer manufacturer Cheap Price CE approved hydraulic Surface Grinder machine Manual Grinding Machine factory 618 1224 1230 4080 Sp2502

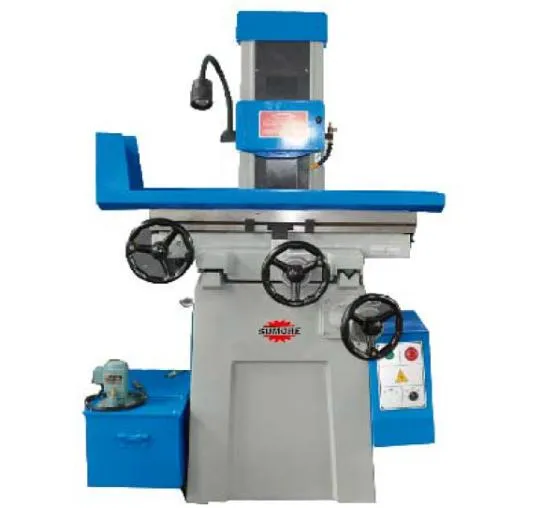

Surface Grinder SP2502(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
1. Quality castings and precision ball bearing supporting the spindle
2. Coolant system with nozzle and flow control valve
3. Cast iron machine body and stand for maximum rigidity and smooth operation available
Product Parameters

Model				SP2502
Working table	Table Size (L× W)		mm	460×180
	Max movement of working table(L× W)		mm	500×190
	T -Slot number×width		mm	1×14
Grinding head	Max distance from spindle center to table surface		mm	335
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ180×13×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3440
Feed amount	Vertical feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
	Cross feed on handwheel	Per revolution	mm	2.5
		Per graduation	mm	0.02
Motor power	Spindle motor		kw	1.1
	Coolant pump motor		w	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	650
	Gross		kg	750
Overall dimension(L×W×H)			mm	1550x1150x1590
Package dimension(L×W×H)			mm	1000x1150x1760

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
