US$5,000.00-80,000.00
|
1 set
(MOQ)
|
Basic Info.
Application Area
Agricultural Chemicals, Engineering & Construction, Medicine, Health Food, Food, Cosmetic
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Safety Features
Emergency Stop Button, Safety Lock
Temperature Control
With Cooling System
Mixing Drum Shape
Conical
Operating Type
Cycle Operating
Transport Package
Wooden Case
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
0.31cm * 0.40cm * 1.20cm
Package Gross Weight
500.000kg
Product Description
Main application:
The mixer is suitable for mixing of dry granule materials in pharmaceutics, chemical and foodstuff industries, especially for those in high tonnage.
Working principle:

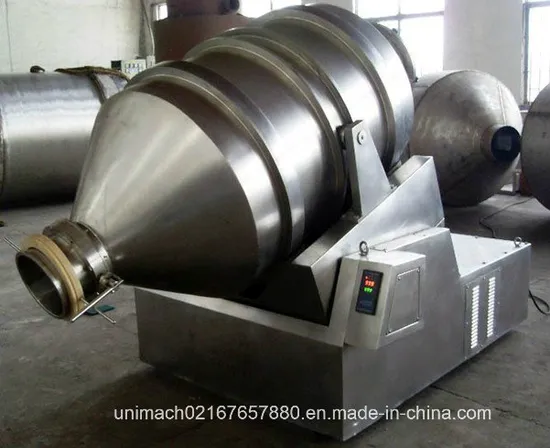

The mixing tank is a cylinder-shaped barrel without any strring decive inside, which makes the self-rotation around its axis and also produces reversible swing movement around its horizontal axis at the same time. Therefore, the target materials inside the barrel coulu be mixed diffusely and moveably. It is features with short mixing time, good uniformity, big output, convenient to discharging, etc. It is for prompt, even and cast mixing.
| model | Hopper volume | Loading volume | Max. loading weight | Rotating speed | Motor rate | Overall dimension
(L×W×H) | Hopper weight | Weight
(kg) |
| EYH-60 | 60 | 30 | 20 | 50 | 0.4 | 700×730×1100(mm) | 15 | 115 |
| EYH-150 | 150 | 75 | 50 | 37 | 1.15 | 800×1050×1450(mm) | 50 | 190 |
| EYH-300 | 300 | 150 | 100 | 30 | 1.15 | 900×1350×1550(mm) | 60 | 340 |
| EYH-600 | 600 | 300 | 200 | 23.6 | 3 | 1170×1640×2050(mm) | 140 | 1150 |
| EYH-800 | 800 | 400 | 280 | 19.8 | 3 | 1320×1950×2150(mm) | 200 | 1600 |
| EYH-1000 | 1000 | 500 | 350 | 19.8 | 3 | 1360×2040×2300(mm) | 240 | 1700 |
| EYH-1500 | 1500 | 750 | 520 | 16.2 | 4.4 | 1580×2400×2550(mm) | 320 | 2000 |
| EYH-2000 | 2000 | 1000 | 700 | 16.2 | 7.4 | 1740×2600×2770(mm) | 430 | 2600 |
| EYH-3000 | 3000 | 1500 | 1050 | 13.8 | 11 | 1800×2900×2950(mm) | 620 | 3500 |
| EYH-4000 | 4000 | 2000 | 1400 | 12.8 | 13 | 1970×3300×3300(mm) | 700 | 4100 |
| EYH-6000 | 6000 | 3000 | 2100 | 11.2 | 18.5 | 2300×2900×3800(mm) | 1100 | 6100 |
| EYH-8000 | 8000 | 4000 | 2800 | 10.4 | 22 | 2540×4100×4050(mm) | 1450 | 7900 |
| EYH-10000 | 10000 | 5000 | 3500 | 9 | 30 | 2900×4500×4400(mm) | 1650 | 9500 |
>>
