Hot Metal CE Approved Sumore China Price Tornos Machine CNC Lathe 6140 Fanuc

Product Description

Product Description
Factory factory direct sale Low Price and High Quality CNC Lathe Ck6136A-2 ck6140 ck6150 ck6166 ck6180 Good Service New Sumore Automatic Turning Machine cnc lathe 6140 6150 6166 6180 fanuc with CE is new machine and we won't provide used cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine. Features / advantage of cnc lathe machine is as below:
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station, or 6-stations tool holder.
5. All machines have to pass the checklist of the machine precision before shipment
6.The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret and gang-tools turret can be both installed.
8. Fully enclosed protective cover.
Product Parameters

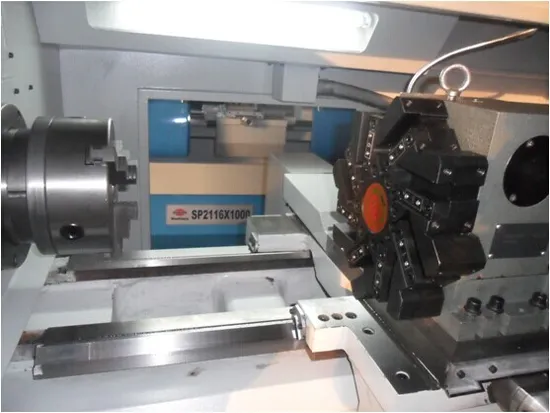

Model	SP2116
Swing over Bed	360/400 mm
Swing over Carriage	190/220 mm
Rail width	330mm
Spindle nose	A2-6
Spindle Taper	MT6
Spindle Bore	60 mm
Spindle Speed	150 - 2,500 rpm
Distance Between Centers	750/1000/1500 mm
X- travel	250mm
Size of 3-jaw chuck	Ø200/250mm
Stations of tool carrier	4/6/8 or tool array
Min. setting unit of motor (X)cross	0.001mm
Min. setting unit of motor (Z)cross	0.001mm
Moving speed of (X)cross	4m/min
Moving speed of (Z)cross	6m/min
Max. size of tool post	20/25mm
Tailstock sleeve dia.	Ø55mm
Tailstock sleeve taper	MT4
Tailstock sleeve travel	120 mm
Coolant motor power	120W
Motor Power	5500W
Voltage and Frequency	Customerized
Packing Size (LxWxH)	2300 x 1550 x 1950 mm
Net Weight	1600 kg
Gross Weight	1700 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.

---
