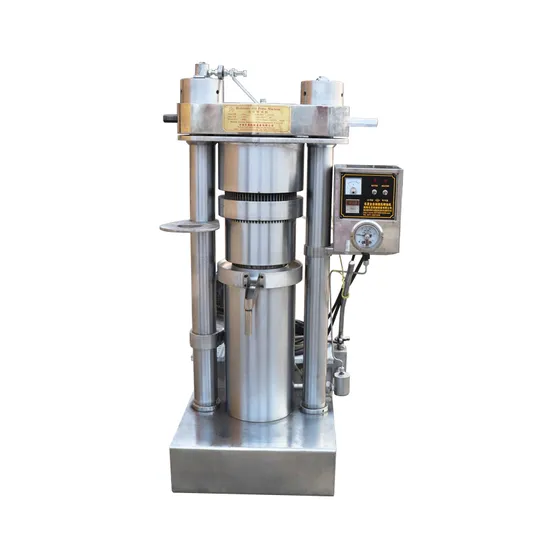

Small Hydraulic Coconut Seasme Cocoa Bean Oil Extractor Oil Presser Cold Oil Press Machine

Product Description

Product Description
What's the oil press machine
Oil press machine is mainly working with oil seeds, like walnut, coconut , cocoa butter,sesame, sunflower ,peanut, chest nut and etc material to manufacture oil.
Working principle of hydraulic oil press machine
Lewin oil press machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil rate.
Our hydraulic oil presser is the most advanced equipment and takes up less area.It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system.
Product Parameters

Model	6YY-185	6YY-230A	6YY-230B	6YY-250	6YY-270	6YY-300	6YY-335	6YY-355
Material cylinder diameter(mm)	185	230	230	250	270	300	335	355
Work pressure	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa
Single Phase(Kw)	2.2	2.2	2.2	2.2	4	/	/	/
Three phases(Kw)	1.1	1.1	1.1	1.1	2.2	2.2	2.2	3
Capacity (kg/batch)	4	8.5	9.5	11	13.5	16	20	23
Batch working time (minutes)	8--10	8--10	8--10	8--10	8--10	8--15	8--15	8--15
Weight(Kg)	590	924	950	1070	1230	1600	1750	2350
Dimension(mm)	600*800*1150	670*950*1460	670*950*1560	710*950*1560	750*1010*1640	1000*1100*1660	1100*1240*1730	1160*1200*1810

Write to us to get Price!!!
Working oil seed material parameter:
Usage:
Detailed Photos
Structure of our hydraulic oil press machine: Brief introduction of Advantage:
1. Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2. It has high pressure,max working pressure is 60Mpa, higher than other machine, provide higher oil yield.
3. Double pump( high pressure pump and low pressure pump) hydraulic system, the key part of machine. 2 pump hydraulic system can improve work efficiency and improve oil yield.
4. The hydraulic system has a safety valve to ensure the safe operation of the machine.
5. Oil line is thinner, only 0.36mm, it can filter oil residual directly, final oil can reach to edible oil.
6. Lewin hydraulic oil machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 to 15 minutes.
7. It can fully cold press, if you have special request of temperature, keep "heating" switch off, temperature will be same as room temperature. More environmentally and economic,easy operation.
Detail parts introduction:

Write to us to get Price!!!
Packaging & Shipping
Company Profile
Click here to begin your order!!!
FAQ
Q: Which machine is best for oil extraction? Hydraulic or screw oil presser? A: It depends on the oilseed. High value oil fit for hydraulic oil press, it is better to use screw oil press machine. If Want to get edible and more oil yield, it's better to use screw oil presserQ: What are the different types of oil pressing machines?A: From the working principle of oil presser, there are 2 types of oil press machine on the market, one is hydraulic oil presser and another called screw oil presserQ: What equipment is used to make sunflower oil?A: One of our screw oil pressers can finish all the processing of making sunflower seed oil. Our machine supports cold press, no need toaster machine. Our screw oil press machine is also equipped with the vacuum oil filter, it can deliver the kitchen grade oil directly.
Q: Can i test the machine before ordering?
A: Yes, of course. We accept customized.
Q: The power supply in our country is unstable. If there is a power outage during the pressing process, will the machine be damaged?A: Generally it not damaged the machine, when power outage, keep off the machine, when have power, operate the machine is okay. But noted, need let the material in the press system out if power outage.
