Basic Info.
Certification
ISO9001:2008, CE
Application Field
Agriculture
Name
4lz-4.0b Rice Harvester
Structure Type
Full Feeding,Self Propelled,Track
Total Losses(%)
Rice<3.0 ,Wheat<1.2
Pure Field Capacity(Ha/H)
0.17-0.40
Engine
70HP Diesel Engine
Transport Package
Iron Steel Box
Specification
4080*2150*1940
Production Capacity
5000sets/Year
Product Description

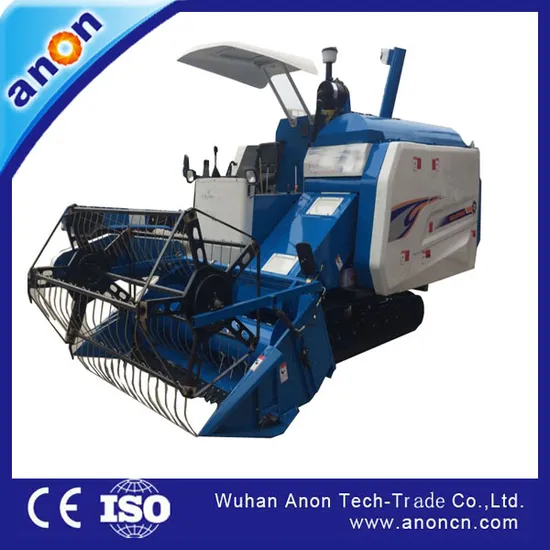

Anon Combine Harvester Harvesting Maize Paddy Rice Wheat Farming Harvester Corn Combine Harvester
This machine is conjoined structure, convenient installation, with tire track, suitable for deep mud area, double harvesting cutter with high efficiency, low fuel consumption, outside circle structure to prevent weeding, clean threshing, less lost, big heave amplitude of cutting platform, and suitable for different height of paddy crop. Winnowing is not affected by the dew. It is the best choice for village household to harvest paddy and wheat in mountain and hilly area. It also has the advantages of clean winnowing, less paddy loss, compact structure, less faults, not affected by the dew. It can work under any climate condition.
Feature of Anon Combine Harvester Harvesting Maize Paddy Rice Wheat Farming Harvester Corn Combine Harvester
1.Combine harvester can be used to harvest wheat ,rice and paddy. It combines three functions:cutting, threshing and collecting grains into the bag.
2.This type of machine especially suitable for the mountainous and hilly region
3.The rice wheat combine harvester consists of scrabbling the grains feeder, cutter, delivery cylinder,threshing cylinder,sieve, grain convey screw, grain conveying outlet, wheels, engine, straw outlet .With small size, light, easy to operate.
1. Big grain tank
2.Tough rubber track for wet and muddy paddy field
3.Combined rice cutting and threshing in once machine
4.Different Cutting width for choosing
5. Easily operation and transportation
6.Thorough threshing
7.Clear separation
8.Low grain breakage
9.High grain cleanness
10.Good maneuverability in the wet and soft field
11.Quality engine with sufficient power reserve
12.Low vibration and low noise
Specification of Anon Combine Harvester Harvesting Maize Paddy Rice Wheat Farming Harvester Corn Combine Harvester
Model
| AN4LZ-4.0B
|
Total losses(%)
| Rice≤3.0 ,wheat≤1.2
|
lmpurity rate(%)
| ≤2.0
|
Breakage rate(%)
| ≤1.5
|
Reliability(%)
| ≥93
|
Cutting width(mm)
| 1600
|
Pure field capacity(ha/h)
| 0.17-0.40
|
Fuel consumption
| 8-10L/H
|
Structure Type
| Full feeding,Self propelled,track
|
Track
| 350mm*90mm*46
|
Weigh(kg)
| 2350
|
Feed rate(t/h)
| 6.5
|
Dimensions at work, LxWxH(mm)
| 5150x2600x2675
|
Diesel engine horsepower(kw/rpm)
| 42/2800
|
Ground pressure(kpa)
| ≤24
|
Travel speeds
| 6 speeds forward,2 speeds backward
|
Mini.ground clearance(mm)
| 200
|
grain Tank
| 0.3m3 or 0.7m3
|
Cleaning type
| Double sieves + blower + re-thresher
|
Grain unloading method
| Sacked & Auto unloading
|
>>
