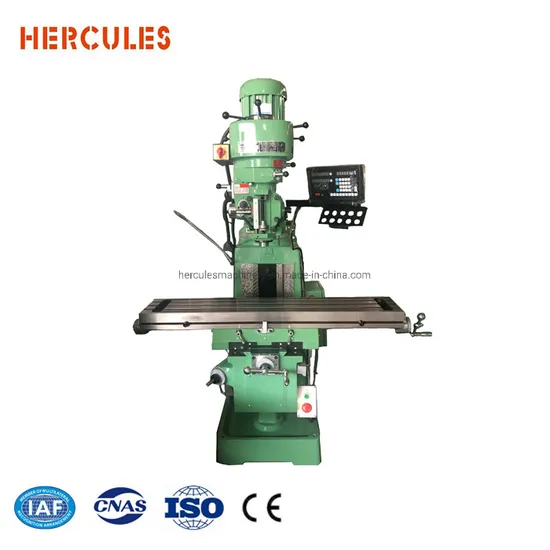

M4 Vertical Turret Type Milling Machine for Metal, Taiwan Spindle

Product Description

Advantage!!
1. High-frequency heat treatment for working table : hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.


3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.

5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .

!Specification of machine :

Model	M4(M4E)	M4VA	M4VB
	Economic Series	Precision High Accuracy Series
Table size(L*W)(mm)	1270x254	1270x254	1270x254
Max.load of table (kg)	300	300	300
X axis(mm)	900 810 with power feed	900 810 with power feed	900 810 with power feed
Y axis(mm)	400	380	380
Z axis (mm)	400	360	360
Work table T slot (No.-size*pitch) (mm)	3-15.88x63	3-15.88x65	3-15.88x65
Distance between spindle and table(mm)	45-450	50-410	50-410
Ram travel (mm)	380	520	520
Travel of spindle quill (mm)	120	127	127
Auto crossward feed(mm/rev)	0.04,0.08,0.15	0.04/0.08/0.15	0.04/0.08/0.15
Spindle speed(rpm)	80-5440rpm 16steps	80-5440 rpm 16steps	80-5440 rpm 16steps
Spindle hole taper	R8 / NT30 (optional )	R8 / NT30 (optional )	R8 / NT30 (optional )
Main Motor	3HP	3HP	3HP
Tilt angle for milling head	left and right±90º forward and backward±45º	left and right±45º forward and backward±45º	left and right±90º forward and backward±45º
Guiding tracks(X.Y.Z)	△	△△	△
Dimension(L*W*H)(mm)	1750x1650x2150	1750x1650x2150	1750x1650x2150
Milling head	Round step milling head	Round step milling head	Round step milling head
Weight (kg)	1300	1250	1300
Hercules Machinery Equipment Ltd.

Optional milling head :
Round step milling head
Square head with side brake milling head
M4VA X/Z axis Dovetail way,Y Square way
M4VB X axis Dovetail way, Y/Z Square way

---
