Customized FRP Grating, Fiberglass FRP Grating

Product Description

Product Description Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Fiber glass grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
Specification:

Specification(mm)	Panel size(mm)	Weight(kg)	Customize
38*38*25	1220*3660	54	customized sizes are acceptable.
38*38*30	1220*3660	70
38*38*38	1220*3660 1000*4007	88 81
50*50*50	1220*3660	98
19*19*38*38*30	1075*3626	72
38*38*65	1030*4040	141
40*40*40	1010*4040	81
19*19*38*38*38	1220*3660	92
25*25*50*50*30	1220*3660	62

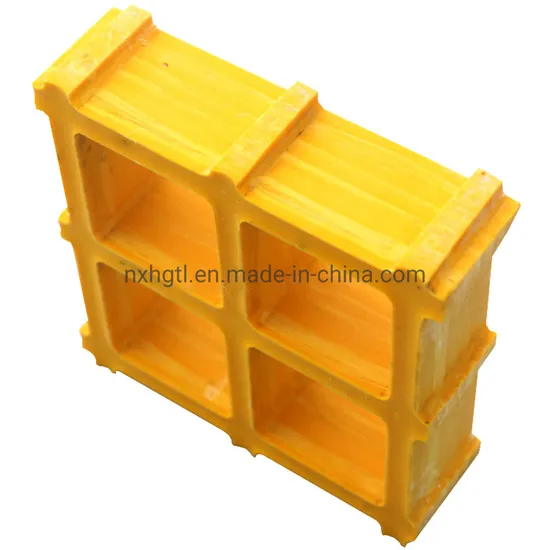

Detailed Photos
Company Profile Pingxiang Nanxiang Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 20 years experience in Chemical Packing. We are located in West Section Hi-Tech Industry Park Pingxiang City, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, random and structured chemical packingin ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmentalapplication.Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee totalcustomer satisfaction. Besides, we have received ISO9001:2008 certificate, SGS report, and credible merchant of ******. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven Continents.Since its foundation, our company keeps living up to the belief of "honest selling ,best quality ,people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products .We promise that we will be responsible all the way to the end once our services begin.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We arelooking forward to forming successful business relationships with you, also warmly welcome to visit our factory.

---
