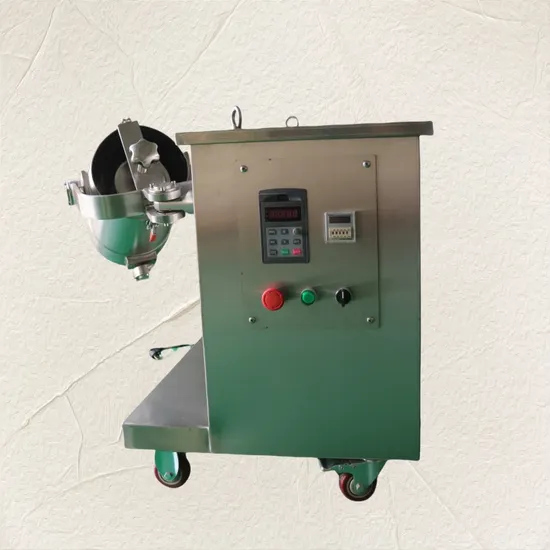

Sw-10 Stainless Steel 3D Rotating Powder Mixer Blender Mixing Blending Equipment in Food Industry Powder Blender

US$1,950.00 1 Piece (MOQ)

Basic Info.

Model NO.

SW-10

Application

Powder, Granules, Powder

Application Area

Agricultural Chemicals, Food

Certification

CE, ISO

Condition

New

Main Material

Stainless Steel

Mixing Drum Shape

Circular Groove

Stirring Type

Spiral

Warranty

1 year

Working

High Speed Mixer

Machine Weight

115kg

Power

0.37kw(220V, 50Hz)

Barrel Capacity

10L

When to Ship

Can Be Sent out Within 24 Hours

When to Receive

11-15 Days

Powder Type

Dry Powder Only

in Stock or Not

in Stock and Can Be Shipped out Shortly

Max. Loading Capacity

Max. Loading Quantity

4kg

Mixing Speed

12r/Min

Mixer Type

Powder Mixer

Layout Type

Horizontal

Operating type

Continuous Operating

Transport Package

Wooden Cse Packaging

Specification

860*800*860mm(L*W*H)

Trademark

Chigreen

Origin

China

HS Code

8474390000

Production Capacity

200 Pieces Per Month

Packaging & Delivery

Package Size

86.00cm * 80.00cm * 86.00cm

Package Gross Weight

115.000kg

Product Description

SW-10 Stainless Steel 3D Rotating Powder Mixer Blender Mixing Blending Equipment in Food Industry Powder Blender
Product Name : Powder Mixer Machine
Model: SW-10
Barrel Capacity: 10L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 9L
Range of Spindle Speed(r.p.m): 1 - 12 r.p.m
Max. Loading Capacity: 4KG/TIME
Weight (KG): 115 KG
Material: SUS304
Voltage: 220V OR 110V
Dimension(L*W*H):860*800*860mm
Power (kW): 0.37 kW
Warranty: 1 Year
After-sales Service Provided:Video technical support
This 3D mixer is suitable for pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries of dry powder, granular material mixing.Simple structure,easy to operate.
It is convenient to maintain and clean. It is an ideal equipment for enterprises.
This machine is suitable for mixing dry powder and granular materials in pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries.
The loaded cylinder is driven by the driving shaft to perform compound movements such as translation, rotation and tumbling over and over again, prompting the material to perform three-way compound movements in the circumferential, radial and axial directions along the cylinder, thereby realizing a variety of materials.
The mutual flow, diffusion, accumulation, and doping achieve the effect of uniform mixing; during operation of the machine, due to multi-directional mixing, the flow and diffusion are accelerated, and the material gravity segregation and diffusion caused by the centrifugal force of general mixers are solved. Accumulation phenomenon, no dead ends in mixing, can effectively ensure better quality of mixed materials.
For example: coffee powder, white sugar, Chinese herbal medicine, flour, food powder, spices, chemical fertilizers, iron powder metal powder, color masterbatch, feed, etc.
Multi-directional movement, short mixing time, high efficiency, loading coefficient up to 0.8 (ordinary mixers are around 0.5)

Model	SW-10 3D Mixer
Barrel volume (L)	10
Working volume (L)	9
Max loading (Kg)	4
Motor power (Kw)	0.37
Hybrid speed (r/min)	1-12
Overall size(mm)	860800860
weight (Kg)	115
Best mixing time per time (min)	15-20

This SW-10 3D Mixer Machine Details
1. Compact structure, easy to operate and maintain.
2. Made of stainless steel
3. Elegant design of V-like machine body to blend stuff with no dead corner.
4. Works very steady and quite.
5. Digital control the blending time.
Application: This machine is suitable for mixing dry powder or granular materials such as pharmaceuticals, chemical industry and food.
Chemical products: iron powder, copper powder, magnesium powder and other chemical powder.
Feed: It can be mixed with various feeds, such as fishery feed, poultry feed, wildlife feed, fowl feed and so on.
Food: such as condiments, additives, vitamins, and various sugar products.
Structure:
Low noise, beautiful and concise appearance, convenient operation and maintenance, no residue, no cross-contamination.
The machine is made of 304 stainless steel for the contact part and shell with medicine. The cylinder body is made of stainless steel. It is corrosion-resistant and has long service life.
Technical Parameter of other models:

Model	SW 10	SW 20	SW 50	SW 100
Barrel volume	10L	20L	50L	100L
Maximum charge volume	9L	17L	42.5L	85L
Maximum charge weight	4kg/time	17kg/time	42.5kg/time	85kg/time
Spindle speed	12r/min	12r/min	0-10.6r/min	0-10.6r/min
Motor power	0.37kw(220v,50hz)	0.55kw(220v,50hz)	0.75kw(220v,50hz)	1.5kw
Dimensiom(LWH)	860800860mm	800800650mm	89011501250mm	13501400140mm

Model	SW 200	SW 400	SW 600	SW 1000
Barrel volume	200L	400L	600L	1000L
Maximum charge volume	180L	340L	540L	800-850L
Maximum charge weight	180kg/time	204kg/time	540kg/time	480-510kg/batch
Spindle speed	0-11r/min	1-8r/min	0-8.5r/min	0-6r/min
Motor power	2.2kw	4kw	5.5kw(220v,50hz)	11KW
Dimensiom(LWH)	145015001400mm	165019001900mm	175021002100mm	2180×2500×2200mm
Weight	568kg	1000kg	1200kg	1500 kg

FAQ ( Frequently Asked Questions ) Q: What's your MOQ ?
A: It is ok if you need 1 piece of this 3D mixer machine for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment way with trade assurance, it is similar to ****** .
Q: Do you have 220V motor and 110V motor for Choice ?
A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it .
Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
