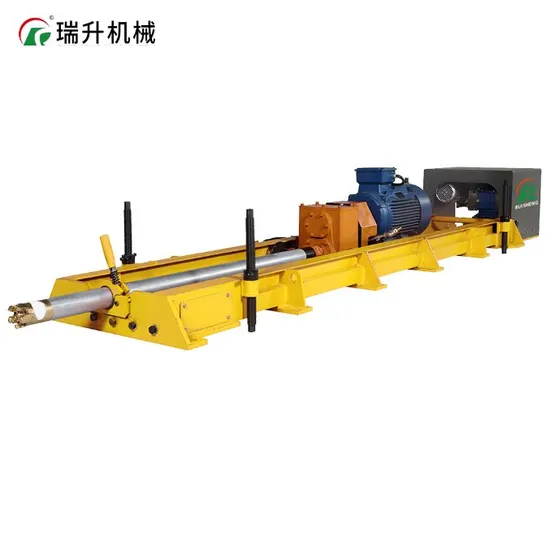

Ruisheng Stone Mining Granite Marble Automatic Horizontal Drilling Rig

Product Description

Product Description
This machine is used for drilling horizontal hole for passing through the diamond wire saw during stone quarrying .It has the following features:high drilling efficiency ,long life,esay hole-joining,high precision,etc.The walking motor and the inverter are used for automatic power feeding device.The real-time main motor current and the walking motor rotation speed are displayed on the control platform.The power control cable between the main machine and the control platform is connected by the aviation plugs.The operation and installing of the machine are convenient.
the control mode adopts electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect.Meanwhile ,it reduces the intensity of labor.

	UNIT	RS-75HDM	RS-75HA1	RS-75A2
OPERATION MODE		Manual	Automatic	Automatic
MAIN MOTOR POWER		15kw (4P)	15 (4P)	15 (6P)
DIAMETER OF DRILL HOLE		Φ75	Φ75	Φ75
MAX.DEPTH OF DRILL HOLE		Max.30	Max.30	Max.30
SPEED OF DRILLING		3~5	3~5	3~5
SINGLE FEEDING DISTANCE		1.5	1.5	1.5
SATER SUPPLY PRESSURE		≥0.2	≥0.2	≥0.2
DRILLING DIRECTION		Horizontal	Horizontal	Horizontal
		2570*770*515	2570*770*515	2570*770*515
		950	1000	1050

---
