Dull Air Vacuum Vapour Recovery Pump for Vapor Recovery Dispenser

Product Description

Specification

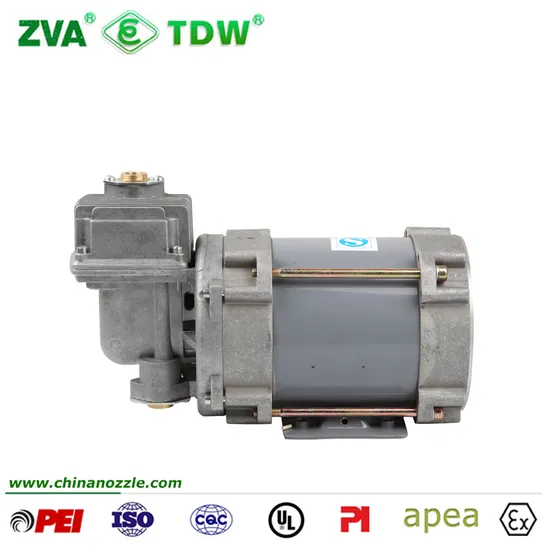

The TDW VRP-70 Vapour Recovery Pumps are vacuum pumps with integrated flame arresters arranged on the inlet and outlet sides to suck off explosion - capable fuel vapour/air mixtures into vapour recovery device s of dispensing devices at filling stations.
Features and Benefits:
Ø Protection System - To prevent a flame breakthrough in deflagrations or stable detonations of explosion - capable vapour/air mixtures of explosion group in the case of ignition on the dispensing valve and the following subsequent max. hose and pipe length: gas return hose with an internal diameter < 10mm in a coaxial hose <6mm, or optionally coaxial hose <6mm with an outer diameter <38mm, together with a subsequent ID 15pipe (G 1/2")<3mm.
Ø The gas temperature in the outlet line must not exceed 95° C±5° C.
Ø For faultless function is necessary to keep the product clean.
Ø Selective of Single pump head or double pump head.
Ø 100% Factory Tested

Technical Specifications
Resistance to Pressure	0.3 Mpa
Setting Pressure	≤0.18Mpa
Max Flow rate	70L/m
Current	<0.9A
Voltage	220V/380V
Frequency	50HZ
Moter Power	380w
Motor Speed	2820r/min
Noise Sound	<70dB
Temperature	-25° C to 55° C
Net Weight	12.80KG(Single), 14.95KG (Double)
