Factory Direct Custom Right Angle Gearbox Geared Motor Industrial Helical Gearbox

Product Description

Factory direct custom right angle gearbox geared motor industrial helical gearbox
Product Description

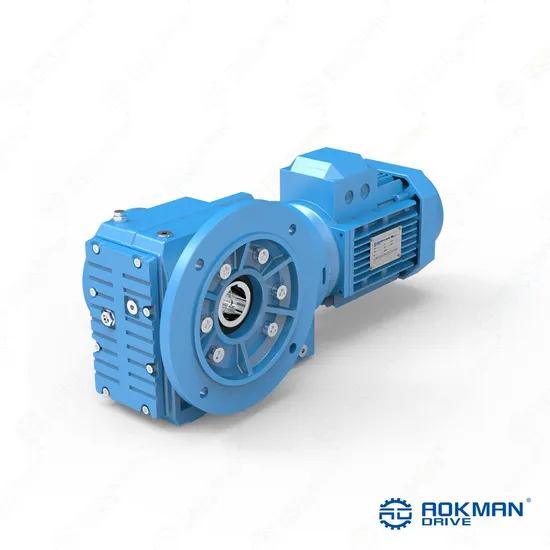

Description: K Series Helical Bevel Gearbox
Overview
(1) Input mode: coupled motor, belted motor, input shaft or connection flange.
(2) Right angle output.
(3) Compact structure.
(4) Rigid tooth face.
(5) Carrying greater torque, high loading capacity.
(6) High precision gear, ensuring the unit to operate stably, smooth transmission.
(7) Low noise, long lifespan.
(8) Large overlap coefficient, abrasion resistant.
Detailed Photos K series gear units are available in the following designs:
KAZ..Y..Short-flange-mounted helical-bevel gear units with hollow shaft
K...Y...Foot-mounted helical-bevel gear units with solid shaft
KAT...Y...Torque-arm-mounted helical-bevel gear units with hollow shaft
KAB...Y...Foot-mounted helical-bevel gear units with hollow shaft
K(KF,KA,KAF,KAB,KAZ)S...Shaft input helical-bevel gear units
KA...Y...Helical-bevel gear units with hollow shaft
KA(K, KF ,KAF, KAB ,KAZ)R..Y..Combinatorial helical-bevel gear units
KF...Y...Flange-mounted helical-bevel gear units with solid shaft
KA(K, KF ,KAF ,KAZ)S...R...Shaft input combinatorial helical-bevel gear units
KAF...Y...Flange-mounted helical-bevel gear units with hollow shaft
KA(K, KF ,KAF, KAB ,KAZ)...Y...When equipping the user's motor or the special one ,the flange is required to be connected
The weights are mean values, only for reference.
Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
Rated Power:0.18KW~200KW
Rated Torque:Up to 50000N.m
Gear Arrangement:Bevel Helical Hardened Gearbox
Input Speed:50HZ or 60HZ of 4Pole,6Pole and 8pole motor
Ratio:5.36~192.18
Product Parameters Structure:

K(-)	K(A)	K(F)	Input power range	Output speed	Output torque
Foot-mounted	Hollow shaft output	Flange-mounted	0.18-200kw	0.1-270r/min	Up to 50000Nm

Input power rating and maximum torque:

Size	38	48	58	68	78	88	98	108	128	158	168	188
Structure	K KA KF KAF KAZ KAT KAB
Input power rating(kw)	0.18~ 3.0	0.18~ 3.0	0.18~ 5.5	0.18~ 5.5	0.37~ 11	0.75~ 22	1.3~ 30	3~ 45	7.5~ 90	11~ 160	11~ 200	18.5~ 200
Ratio	5.36~ 106.38	5.81~ 131.87	6.57~ 145.15	7.14~ 44.79	7.22~ 192.18	7.19~ 197.27	8.95~ 175.47	8.74~ 141.93	8.68~ 146.07	12.66~ 150.03	17.35~1 64.44	17.97~ 178.37
Maximum Torque(N.m)	200	400	600	820	1550	2770	4300	8000	13000	18000	32000	50000

Gear unit weight:

Size	38	48	58	68	78	88	98	108	128	158	168	188
Weight	11	20	27	33	57	85	130	250	380	610	1015	1700

Packaging & Shipping
Company Profile
After Sales Service

Pre-sale services	1. Select equipment model.
	2.Design and manufacture products according to clients' special requirement.
	3.Train technical personal for clients
Services during selling	1.Pre-check and accept products ahead of delivery.
	2. Help clients to draft solving plans.
After-sale services	1.Assist clients to prepare for the first construction scheme.
	2. Train the first-line operators.
	3.Take initiative to eliminate the trouble rapidly.
	4. Provide technical exchanging.

FAQ 1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, environmental protection, logistics and etc.
4.Do you offer any visiting?
Yes! We sincerely invite you to visit us! We can pick you from airport, railway station and so on. Also, we can arrange housing for you. Please let us know in advanced.
5.Is your quality good?
Quality never tell lies, we're theprofessional manufacturer and exporter of gear reducer and motor in Asia, who has been given license since 1982. Also, we had achieved ISO9001 and CE Certificate among all manufacturers.
Contact:
If you are interested in our product, welcome you contact me.
Our team will support any need you might have.

---
