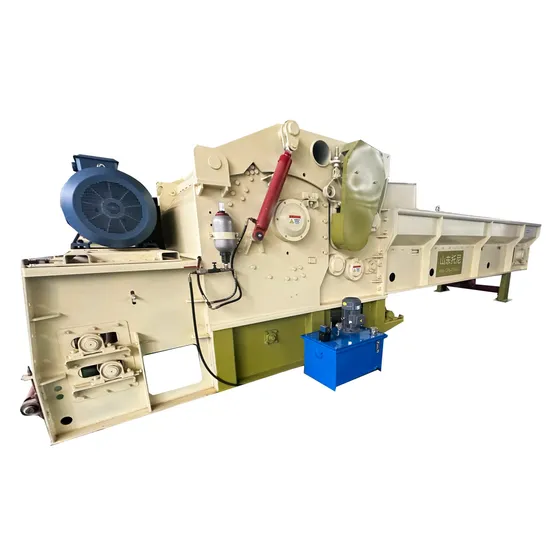

Forestry Woodworking Machinery Wood Chipper Comprehensive Wood Crusher

Product Description

Forestry Woodworking Machinery Wood Chipper Comprehensive Wood Crusher
Product Description
Nails Moveing Template Crusher can process wood with nails, wood pallets, site waste formwork, wood brackets, roots, waste furniture, branches, wood, formwork waste, house demolition waste, doors and Windows, etc.
Mainly used in biomass power plants, boiler plants
Structure and composition
1.Feeding:To transport wood with nails
2. Feeding pressure roller: control the feed rate and keep the sheet does not slip and on feed situation.
3.Sprial crushing roller; in the roll along the circumferential direction of the welding knife,to ensure
that the crushing roller in the circumferential direction of the same force.
4.The template is broken with the feed and broken sync,to achieve broken uniform.
5.Feed roller with UCK series bearing plus spring compression mechanism,can be adapted to the
different thickness of template
6.Feeding roller and crushing roller with different power system,easy to control.
operating principle:
The comprehensive crusher mainly relies on impact energy to complete the crushing of wood operations. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the wood evenly enters the chamber of the comprehensive crusher. The high-speed rotary hammer head impacts and shear tears the wood, causing the wood to be broken. At the same time, the gravity of the wood itself makes the wood rush from the high-speed rotating hammer head to the baffle plate in the body of the frame, the screen bar, in the lower part of the rotor, the screen plate, the grain grade of the crushed wood less than the size of the screen hole is discharged through the screen plate, and the wood that is larger than the size of the screen hole is blocked on the screen plate to continue to be hit and ground by the hammer. Detailed Photos
______________________________________________________________________________________________________________________ Product advantages:

1. This Comprehensive Wood Crusher uses high manganese steel chain plate transmission speed, wear-resistant and durable.
2. International copper wire click, reliable quality
3. Wear-resistant pad chrome-plated blade, powerful, high efficiency
4. The whole machine adopts thickened fuselage, seamless welding, durable, equipment service life factory, low maintenance rate
Machine model parameters

TONY Wood Chipper Model-Blades Type
NO	Model	Power	Capacity	Fly Knives QTY	Inlet Size Width*Length*Height	Max Processing Diamater	Out Chips Size	Weight	Main Machine Machine Size
1	TPQ216	55KW	4-7TPH	2Pieces	1m*4.5m*45cm	20CM	25-55mm-Adjustable	4.8T	5800*1900*1200MM
2	TPC1000	90KW	7-10TPH	6Pieces	1m*4.5m*45cm	20CM	25-55mm-Adjustable	9.8T	8100*1400*2125MM
3	TPC1000	110KW	8-10TPH	6Pieces	1.3m*4.5m*60cm Chain Inlet	25CM	25-55mm-Adjustable	9.8T	8100*1800*2225MM
4	TPC1300-600	132KW	10-15TPH	6Pieces	1.3m*4.5m*60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	9100*1900*2220MM
5	TPC1300-600	160KW	12-15TPH	6Pieces	1.4m*4.5m*60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	9100*1900*2220MM
6	TPC1400-600	200KW	14-20TPH	6Pieces	1.4m*4.5m*60cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	10100*2400*2525MM
7	TPC1400-600	220KW	15-20TPH	6Pieces	1.4m*4.5m*70cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	10100*2400*2525MM
8	TPC1400-700	250KW	20-30TPH	6Pieces	1.6m*4.5m*1m Chain Inlet	35CM	25-55mm-Adjustable	17.8T	11100*2400*2525MM
9	TPC1600-1000	315KW	25-35TPH	6Pieces	1.8m*4.5m*1m Chain Inlet	40CM	25-55mm-Adjustable	25.8T	12100*2400*2825MM
10	TPC1850-1000	355KW	30-40TPH	6Pieces	1.8m*4.5m*1.2m Chain Inlet	40CM	25-55mm-Adjustable	35.8T	13100*2500*2925MM
11	TONY8000	400KW	35-80TPH	6Pieces	1.8m*4.5m*1.5m Chain Inlet	55CM	25-55mm-Adjustable	55.8T	14100*2800*3125MM
11	TONY10000	630KW	50-100TPH	6Pieces	1.8m*4.5m- Chain Inlet	60CM	25-55mm-Adjustable	65.8T	15100*3000*3225MM

Actual pictures of the machine working at the customer's site:
