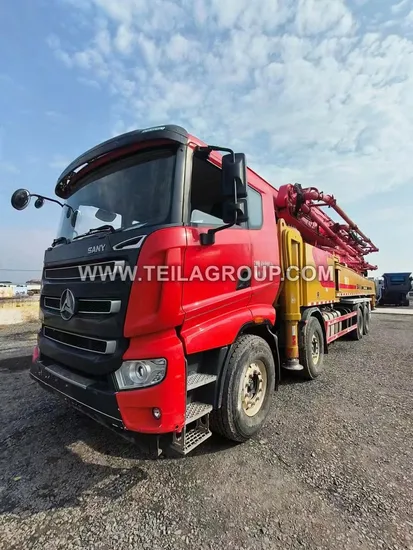

Sany Used 62m Concrete Boom Pump Truck 2020 2021 62 Meters Pumping Tool Construction Building Machinery C8 Pumps

Product Description

Sany Used 62M Concrete Boom Pump Truck 2020 2021 62 meters Pumping Tool Construction Building Machinery Pumps Product Description
Highly Reliable
· · Professional Supplier for Used Concrete Machine for Over 10 Years
· · Machines made by International authoritative-certificate lighthouse factory & world-class manufacturing capability
· · Optimized key parts with ultra-high strength steel
· · Open hydraulic system & high configuration
· · SY customized chassis & SY DEUTZ Engine
· · Stable signal & precise control
- - In Stock, Can be Checked any time! Strong Pumping· · A 10% increase in pumping efficiency
· · smoother flow, less blockage and meet long-time pumping need
· · Dual-purpose machine: quickly transform into a line pump
· · Various boom types & flexible working posture
· · Less site limitation, smaller footprint & wider placement range Extremely Economical· · Advanced fuel combustion & intelligent power matching technology
· · The best cost saving choice
· · Free Cleaning & Inspection Service
· · Professional Factory Maintenance & Remanufacturing
· · Machines in Working Condition with Valuable Prices Ultimate User Experience· · High configuration cab & exceptionally comfortable driving experience
· · Single-button operation design & optimized flow of the entire process
· · MachineLink+ & all in your control
Product Parameters

General Specification
Model No.	SYM5445THBES 620C-10A	Model abbreviation	5445
Height interval	Over 56M
Machine Parameters
Dimension (Length×Width×Height)(mm)	14880×2550×4000	Whole Vehicle Weight (kg)	44000
Boom Leg Parameters
Boom Sections	6	Vertical Reach(m)	61.1
Boom Vertical Depth (m)	42.7	Horizontal Reach(m)	55.9
Span Angle(°)	89/180/180/230/180/180	Arm Sections' Length (mm)	11260/8785/9050/10000/10600/7405
Turntable rotation angle(°)	±360	Delivery pipe diameter (mm)	125
End hose length(mm)	3000	Expansion width of front outriggers (m)	12.170
Rear outrigger expansion width(m)	13.200
Pumping System Parameters
Theoretical Concrete Output(m³/h)	180/120	Concrete Press(Mpa)	8.3/12
Theoretical Pumping Frequency (times/min)	29/20	Water Tank Volume(L)	700
Fuel tank capacity(L)	800	Hydraulic system	Open Mode
Concrete cylinder diameter×route(mm)	260×1900
Chassis Parameters
Chassis Brand	SY	Chassis Mode	SYM5440THB1E
Engine Mode	D12C5-490E0	Engine Power(kW)	348
Engine Capacity (cc)	12.12L	Emission Standards	EURO V
Maximum speed(km/h)	90	Engine Speed(r/min)	1900

Detailed Photos
Company Profile

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.

---
