Large-Span Metal Truss M Steel Roll Forming Machine for Solar Mounting System

Product Description

We main research & development and manufacturing cold bending roll forming machines since 1991.
If you supply for photos of steel products and technical drawings, we can make it to order and meet your requirements.
Large-Span Metal Truss M Steel Roll Forming Machine for Solar Mounting System
Description:

Main Technical data
No.	Item	Parameters
1	Model
2	Suitable material	Galvanized steel & Cold rolled steel sheet
3	Thickness	1.5-3.0mm
4	Total Speed	20 -35 m/min
5	Total power	About 37.5KW
6	Cutting Type	Hydraulic,& Servo tracking
7	Forming step	24 steps
8	Dia. of shaft	¢80mm
9	Shaft	thermal refining HN250-280
10	Driving method	Commutator drive; Soft coupling output.
11	roller	Cr12Mov, Salt bath quenching HR58-62
12	Reducer	K87 series reducer
Main components list -- Whole Line
No.	Item	Unit	Qty
1	Decoiler	Set	1
2	Roll foring machine	Set	1
3	PLC	Set	1
4	Hydraulic station	Set	1
5	Cutting device	Set	1
6	Collector	Set	1

Production process flow chart: uncoiling→ Leveling → roll forming → hydraulic&servo tacking cutting→ collection

Process description

The type production line can produce variety of sizes steel through changing punching molds.cutting, all sizes of punching and cutting length are measured directly by the counter, and the size is set arbitrarily in the man-machine interface.

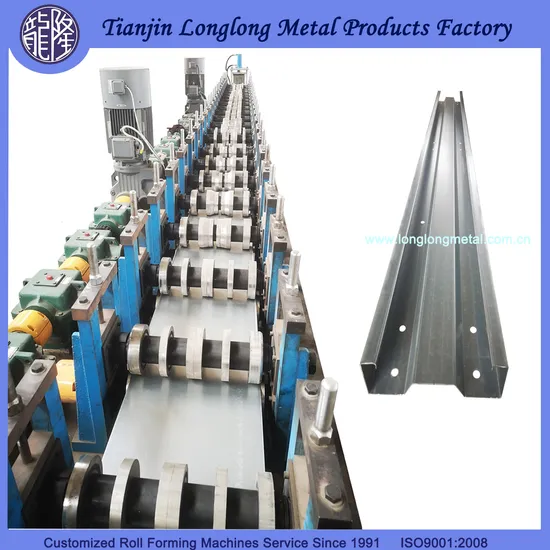

Photos of machine and steel profiles
Successful project
Main Types of Exported Machine
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.

---
