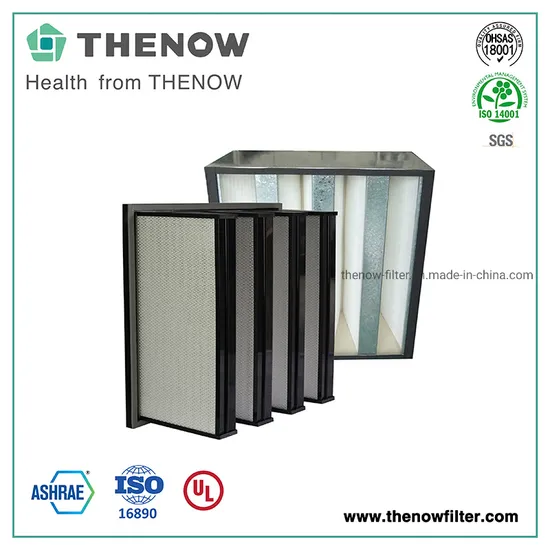

ABS Plastic Frame F6-H13 HEPA Compact V Bank Filter

Product Description

Foreword: Thank you for your interest in advance!
It has been 16+ years since we processed the first HVAC air filter.
You can find various replaceable filters for Camfil, AAF etc. We have all kinds of frames and filter media available. As for prefilter and secondary filters, we buy the filter media of optimum quality from Chinese native market. Their quality is stable and super. As for the HEPA filters, the glassfiber media is from American Lydall and Suzhou H&V. We control the quality from the source.
There are plenty of testing machines in our laboratory including filter media testing and completed filters tested.
Welcome to have a Virtual tour to our factory by clicking the following:
https://thenow-filter.en.made-in-china.com/ Product Description
ABS Plastic Frame F7 F8 F9 E10 E11 E12 H13 H14 Hepa V bank filter

>Structure:
1. External Frame: Aluminum
2. Sealant: Gel-glue
3. Separator: Hot-melt
4. Filter Media: Glass Fiber
5. Maximum Operating Temperature: 80C
6. Gasket: EVA
>Features:
1. Ultra Low pressure drop
2. High efficiency
3. Light weight
4. Thin in depth
5. Low operation cost
6. Uses: Suitable for Manufacturing of electron semicondustors atom force research, medicament, precision instrument, toiletry etc..
>Technical datasheet
For Medium efficiency filter:

Model	Type	W*H*D (mm)	Area (m^2)	Efficiency	Airflow (CMH)	Initial Pressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)
TNVBG592287	Single-header Glassfiber	592*287*292	8.01	M6	1000	55	1700	90
				F7		65		105
				F8		80		120
				F9		95		140
TNVBG592592	Single-header Synthetic fiber	592*592*292	16.9	M6	2000	38	3400	70
				F7		42		80
				F8		50		90
				F9		63		105
Recommended final pressure:400Pa

For HEPA V bank filters:

Model	Type	W*H*D (mm)	Area (m2)	Efficiency	Airlow (CMH)	Initial Pressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)
TNBV305610	Box V-bank Filter	305*610*292	12.37	H13/H14	1000	230/250	1700	280/310
TNBV610610		610*610*292	24.85	H13/H14	2000	230/250	3400	280/310
TNBV592287	Single-header V-bank Filter	592*287*292	9.74	H13/H14	1000	270/300	1700	330/350
TNBV592492		592*492*292	17.81	H13/H14	1600	270/300	2700	330/350
TNBV592592		592*592*292	21.95	H13/H14	2000	270/300	3400	330/350
Recommended final pressure:600Pa

>Dimensions
Company Profile >Company Show
Thenow Purification Technology has focused on air filtration for many years: 16+ years for HVAC air filter and 21+ years for Industrial dedusting dust collector air filters. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.

---
