Ring Type Wood Debarker Machine Ring Debarker for Wood Debarkers

Product Description

Product Description

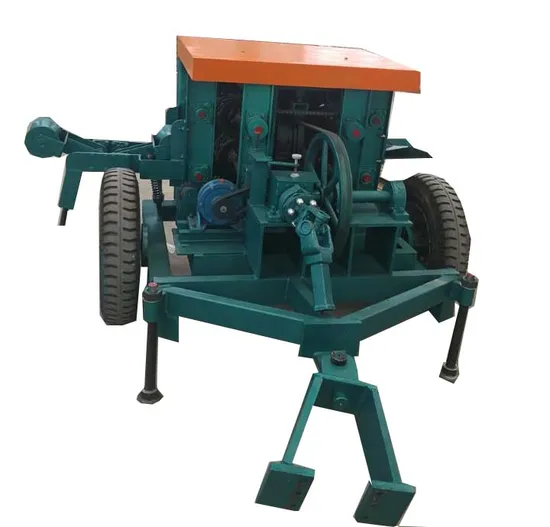

Ring Type Wood Debarker

Model	SHHB320	SHHB260	SHHB220
Feed Opening Diameter	100-320 mm	50-260 mm	30-220 mm
Minimum Wood Log Length	650 mm	650 mm	650 mm
Blade Quantity	4 pcs	4 pcs	4 pcs
Blade Roller Speed (Round/Minute)	590	590	590
Production Capacity(M/Min)	13	13	10
Main Motor Power	7.5 kw	5.5 kw	5.5 kw
Feed Motor Power	2.2 kw	2.2 kw	2.2 kw
Section Height	30 mm	30 mm	30 mm
Machine Weight	1.3 Ton	0.8 Ton	0.8 Ton
Overall Dimension	2200*1400*1750 mm

USD 3800 For Mobile Wheel And PTO
Tractor Speed 5400RPM,6 Belt Slots,PTO Diameter35MM.

Spare Parts	USD/SET EXW	Quantity	Amount
Blade 4 PCS=1SET	115
V Belt	15
Spring 8 PCS =1 SET	97
Coupler 4 PCS =1 SET	127
Bevel Gear	18

Detailed Photos


Cutomer Feedback

Company Profile

Shandong Zouping Shuanghuan Machinery Co.,Ltd.is one of the world's leading manufacturers of high quality sawmills.
Established in 1988,the company has always been committed to the production and R&D of sawmills and sincerely serves 11,000 enterprises.Our products have been exported to 61 countries in the world.
The company's registered brand "SAWMILL-WORLD"including horizontal band sawmill,vertical band sawmill,multiple blade rip sawmill,circular sawmill and chain sawmill and so on.
With the standardization of quality management and service,it has won the favor of many customers.We are making unremitting efforts to improve the quality of our machines.

---
