Small Grinding Ball Mill Equipment Gold Mining Ball Mill

Product Description

Small Grinding Ball Mill Equipment Gold Mining Ball Mill
Application of ball mill machine:
The ball mill is widely applied in mineral classification, cement, fireproof materials, glass, pottery, chemical industry and so on. The ball mill can grind all kinds of rocks and grinding materials. There are two ways of grinding: the dry process and the wet process.
1. Iron ore beneficiation line
2. Copper ore beneficiation line
3. Gold ore beneficiation line
4. Lead-Zinc ore beneficiation line
5. Fluorite ore beneficiation line
6. Iron slag grinding line
7. Cement clinker grinding line
8. Graphite powder grinding line
Ball mill working principle:
There are many grinding medium balls inside the continuous rotating drum (there are many rods inside the rod mill). The continuous feeding material is broken by the shooting balls which are coming from a certain height of the wall of the drum; The falling medium and material would produce irregular slip and roll during the rotation of the drum, and the material is pulverized fine by the grinding effect among medium, drum-lining and materials. The dynamic material level different is produced by continuous forced material charge and discharge, consequently more and more fine material is slow out from the drum, and finish the grinding process inside the drum.
Ball mill structure:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Ball mill parts introduce:
1. Ball mill bearing: China TOP3 brand. Wafangdian, Luoyang brand, Ha'erbin brand
2. Liner: Manganese alloy. We can show you the material certificate.
3. Shell: Q235, thicknesses reach the industry standard.
4. Motor: China first line brand, also we can adopt Siemens and others.
Ball mill technical parameters:

Model	Cylinder		Feed size (mm)	Max. ball Loading (t)	Speed (r/min)	Capacity (t/h)	Discharging size (mm)	Main Motor (KW)	Weight (t)
	Diameter (mm)	Length (mm)
MQY-0918	900	1800	≤20	1.5	36-38	0.65-2	0.075-0.89	18.5	4.6
MQY-0930	900	3000	≤20	2.7	36	1.1-3.5	0.075-0.89	22	6.7
MQY-1224	1200	2400	≤25	3	36	1.5-4.8	0.075-0.6	30	11.9
MQY-1230	1200	3000	≤25	3.5	36	1.6-5	0.074-0.4	37	12.8
MQY-1245	1200	4500	≤25	5	32.4	1.6-5.8	0.074-0.4	55	13.8
MQY-1530	1500	3000	≤25	7.5	30	2.8-6.3	0.074-0.4	75	18
MQY-1545	1500	4500	≤25	11	30	3.8-9	0.074-0.4	110	21
MQY-1830	1830	3000	≤25	11.5	26.6	4.5-12.5	0.074-0.4	130	33
WQY-1845	1830	4500	≤25	15	26.8	6-15.5	0.074-0.4	155	35.5
MQY-2130	2100	3000	≤25	15	23.8	5.8-18	0.074-0.4	155	43
MQY-2136	2100	3600	≤25	18	23.8	6.8-22	0.074-0.4	180	47
MQY-2145	2100	4500	≤25	24	23.8	8-25	0.074-0.4	245	54
MQY-2230	2200	3000	≤25	18	21.3	6.9-23	0.074-0.4	180	48
MQY-2245	2200	4500	≤25	27	21.3	8.5-26.8	0.074-0.4	280	52
MQY-2430	2400	3000	≤25	23	21.3	7-26	0.074-0.4	245	51
MQY-2436	2400	3600	≤25	26	21.3	8.8-33.5	0.074-0.4	280	58
MQY-2445	2400	4500	≤25	30	21.6	11-42	0.074-0.4	320	69
MQY-2460	2400	6000	≤25	44	21.7	14.5-56	0.074-0.4	480	78
MQY-2736	2700	3600	≤25	33	20.7	11.7-54	0.074-0.4	400	86
MQY2740	2700	4000	≤25	38	20.7	13-60	0.074-0.4	450	92
MQY-2745	2700	4500	≤25	43	20.7	14.5-67.5	0.074-0.4	480	98
MQY-2750	2700	5000	≤25	48	20.6	16-75	0.074-0.4	500	106
MQY-2760	2700	6000	≤25	57	20.6	19.5-90	0.074-0.4	630	116
MQY-3040	3000	4000	≤25	47	19	16.5-78	0.074-0.4	500	108
MQY-3064	3000	6400	≤25	74	19	26-125	0.074-0.4	800	138
MQY-3245	3200	4500	≤25	59	18.2	21.6-95	0.074-0.4	630	126
MQY-3254	3200	5400	≤25	73	18.2	25.9-114	0.074-0.4	800	138
MQY-3270	3200	7000	≤25	93	18.2	30.2-148	0.074-0.4	1250	150
MQY-3645	3600	4500	≤25	75	18	24.3-136	0.074-0.4	1000	144
MQY-3650	3600	5000	≤25	86	18	28.1-151	0.074-0.4	1250	152
MQY-3660	3600	6000	≤25	102	18	32.4-181	0.074-0.4	1250	163
MQY-3685	3600	8500	≤25	131	18	45.8-256	0.074-0.4	1800	252
MQY-3867	3800	6700	≤25	130	17.4	40-230	0.074-0.4	1600	185.2
MQY-4060	4000	6000	≤25	126	16.9	40.5-226	0.074-0.4	1500	203
MQY-4067	4000	6700	≤25	136	16.9	45-252	0.074-0.4	1600	206
MQY-4361	4270	6100	≤25	144	15.7	46-258	0.074-0.4	1850	215
MQY-4564	4500	6400	≤25	172	15.6	54-306	0.074-0.4	2000	280
MQY-5064	5030	6400	≤25	216	14.4	68-386	0.074-0.4	2600	320
MQY-5083	5030	8300	≤25	266	14.4	88-500	0.074-0.4	3300	403
MQY-5565	5500	6500	≤25	264	13.8	95-550	0.074-0.4	4500	451.5
MQY-5585	5500	8500	≤25	335	13.8	108-615	0.074-0.4	4500	525

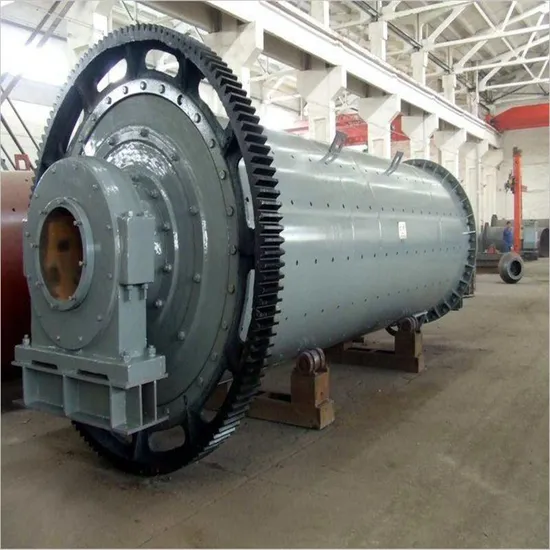

The ball mill we made for your reference:
own casting and forging workshop, we can make liner plates and girth gear, pinion by our selves.
Below picture is liner plates we made.
Below is electric contorl box for ball mill machine, we also can do PLC system as customer requirement.
Other replated products we made for your reference:
Our customers come to our company to negotiate contracts
FAQ
Q: Are you a manufacture?
A: Yes, we are manufacture; our factory was established in 1981.
We focus on providing expert service including design, manufacture, installation & maintenance for the logistic industries & mining equipments.
Q: Terms of Payment:
A: 30% of the total amount by TT as deposit, the balance to be paid by TT before the machines leaving seller' factory.
Or 100% irrevocable L/C at sight.
Q: Guarantee period:
A: The guarantee period for the above machines is twelve months from the date of putting into use, It is not applicable for quick wear parts.
Q: If i need the complete mineral processing line. Are you able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. And give you related professional advice as long as you need.There is a rich experience engineer team of us. We had already built many mining projects in China & Overseas. You can believe our quality and service.

---
