Concrete Slipform Paver/Concrete Paving Machine/Concrete Finisher Mc6500 for Road Curbstone and Barrier

Product Description

MC6500 Concrete Slip form paving machine
Performance and Features
Energy Saving and Environmental Protection
Engine: Shangcai type, 6 Cylinders,Turbocharged,Water-cooled and High-pressure Common Rail Injection, and China Stage III Emission Standard. To meet the needs of high altitude aeras.
High power, Low fuel consumption:Power 180HP@2200rpm,Average fuel consumption18.8l/h
Reliability and Stability
Track Driving System:4 track-driving can provide enough driving force under any condition.
Front Steering. Rear Steering. Collaborative Steering. Crab Steering.
Intelligent Cylinder: Paver can easily steer based on Automatic mode with built-in feedback sensor. It can simplify moving parts and reduce the physical adjustments to the steering system.
Multi-controllers and CAN-bus communication system make system more simple and reliable.
Easy Operating and High Efficiency
Many advantages of All-track steering and positioning :work-site mobility,Saving time and so on.
The main console with big LCD and Friendly man-machine interface simplifies operating.
All Kinds of Configurations and Uses
Centered mold is used to pour road and square.
Offset mold is used to pour curb,gutter,barrier and so on.
Rear mold is used to pour zero-tolerance country road.
Technical Specifications

Mold Place		Centered	Offset	Rear
Paving Width		2500mm-4500mm	100mm-2500mm	2500mm-3000mm
Paving Height		100mm-300mm	100mm-1500mm	100mm-300mm
Paving Capacity		120m3/h	90m3/h	90m3/h
Pouring Radius		60cm(Offset mold mode)
Track Specification		Three or four tracks option, Track size(LXWXH)1830X300X670mm.
Reservoir Capacities		Fuel 320l Hydraulic320l Water 550l
Driving Speed		Paving speed 0-15 m/min Traveling speed 0-30m/min
Engine	Power	Shangcai SC7H180G3,Power 132kW@2200rpm
	Emission	6 Cylinders,Turbocharged,Water-cooled and High-pressure Common Rail Injection, and China Stage III E mission Standard.
Automatic Control		2steering,2grade and 1slope sensors(Offset mold mode); Four Steering and Four slope,( Other mold mode).
Vibrating System		Up to 12 hydraulic circuits with motor-in-head and variable speed control.
Trimmer/Option		Trimming size is 480~1600mm wide and 0~150mm deep.
Belt Conveyor		/	Max speed 110m/min. Hydraulically powered,variable speed conveyor with 5.6m long and 600mm wide belt.
Auger Distributor		Diameter 350mm, Speed 0-33rpm	/	Diameter 350mm, Speed 0-33rpm
Tamper Mechanism		Hydraulically powered,variable speed	/	Hydraulically powered,variable speed
Shipping DimensionLxWxH		6600x2150x2550mm	7120x2150x2550 mm	6600x2150x2550mm
Shipping Weight		20t	16t	19.5t

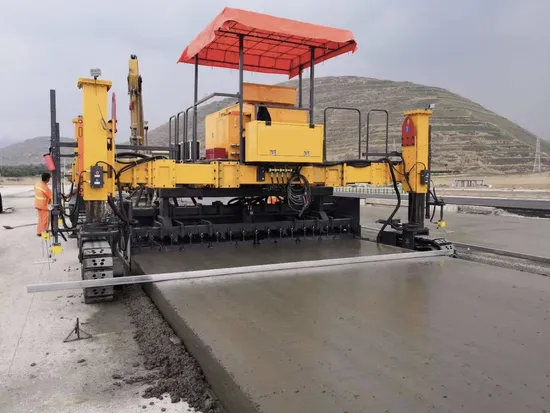

Project Site
Note: Please contact us for more information you may need.

---
