Pco28 1881 1810 10L Plastic Bottle Preform Injection Machine

Product Description

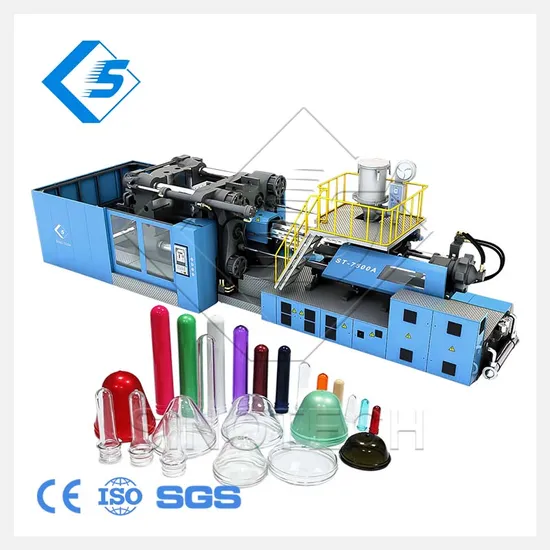

550 ton Pco28 1881 1810 10L Plastic Bottle Preform Injection Machine
Product Description
SINO-TECH ST-550A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-550A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification
Product Parameters

ITEM	UNIT	ST-550A
INJECTION UNIT
SCREW DIAMETER	mm	80	85	90
SCREW L/D RATIO	L/D	22.3	21	19.8
THEORETICAL SHOT VOLUME	cm³	2141	2418	2710
SHOT WEIGHT99(PS)	g	1948	2200	2466
INJECTION PRESSURE	Mpa	188	167	149
THEORETICAINIECTION RATE(PS)	G/s	427	482	541
PLASTICISING CAPACITY	G/s	80	100	118
SCREW TORQUE	N.m	5170
MAX.SCREW ROTATE SPEED	R/min	150
INJECTION STROKE	mm	425
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	5500
MAX.OPENING STROKE	mm	820
SPACE BETWEEN TIE BARS	mm	810*810
MOULD HEIGHT	mm	350-820
MAX DAYLIGHT	mm	1640
EJECTOR FORCE	KN	150
EJECTOR STROKE	mm	210
EJECTOR QUANTITY		13
OTHER
PUMP MOTOR POWER	KW	55
PUMP PRESSURE	MPa	16
HEATING POWER	KW	33
HEATING ZONE		6
SIZE	m	8.4*2.2*2.6
NET WEIGHT	t	23.5
OIL TANK CAPACITY	L	1000
INTERNATIONAL DESIGNATION		5500-4040

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
