Large-scale industrial used industry Painting production line, Shower examination line, Spray booth, Lift, Paint Mixing Room, Platnum Mainenance system, Prep Station booth, Prep Station Room, Prep Station production workshop and so on, each kind of non-sign engineering facilities product; May according to the customer demand design, the production, make each kind especially, big, heterogeneous Spray the Booth room and the industry spray coating work assembly line, measures the body to have custom-made, understood in detail this company product information and the technical parameter, please send a telegram the company information department, the technical department.
| External Size(mm) | 7000x4000x3430 | |
| Internal Size (mm) | 6900x4000x2650 | |
| Cabin System | 1.air intake plenum is made of cold-rolled sheets | |
| 2.ceiling boards are made of galvanized steel sheets | |

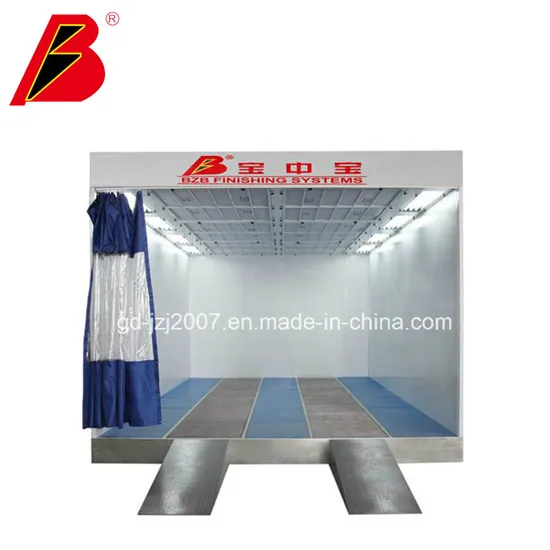

| 3.PVC manual curtains in the front, slipping on the aluminum alloy rails | |
| 4.50mmEPS panels at the back and two sides walls | |
| 5.basement is framed of anti-slip embossed steel plates and grid plates | |
| 6. ramps are anti-slip embossed steel plates, 2 strips, 600mm | |
| Power system | 220V 50HZ 3P | |
| Air Intake System | Inhaling Ventilator | Model: YDW-5.6S | |
| Blower capacity: 15000m 3 /h | |
| Pressure: 800Pa | |
| Rolling speed: 900rpm | |
| Power: 5.5kw | |
| Quantity: 1 set | |
| Air Purification System | The fine structure is made use of Italy filtering cotton. It features multilayer structure so that it blocks away granules bigger than 5μm. It is set as interior-hook block flat style at the bottom of the static pressure room. The whole purification system has capacity of large volume of dust, small air block and long durability. Its filtering rate reaches 98% | |
| |
| |
| |
| Light System | The light boxes present a angle of 45°Against the wallboard. The system consist of 24pcs 36 W Philips lights and electron ballasts; The illumination in the room is above 800 Lux | |
| |
| |
| Electric controlling system | PLC control box, with sanding switch, light switch, emergency stop, fault alarm. | |
| |
| Environmental Conversation System | using the glass fiber wool to filter the dusts | |
| Total power | 6.5KW | |
