Cable Fibra Optica Single Mode G652D 4 6 8 12 24 Hilos Gyxtc8y Aereo Mini Fig-8

Product Description

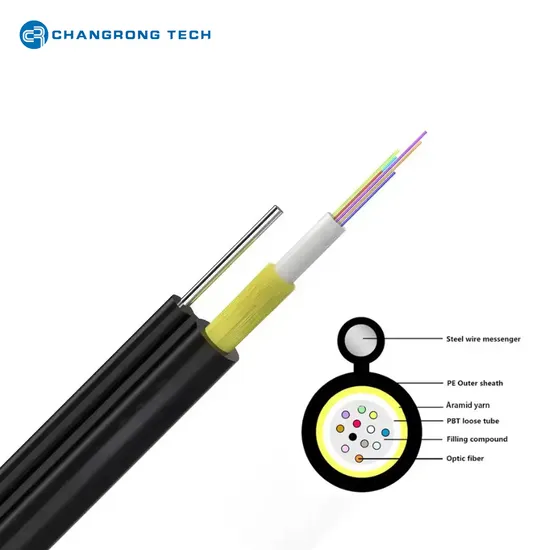

GYXTC8Y Outdoor Aerial FIG 8 Aramid Yarn Armored 2-24 Core Fiber Optic Cable
The 2-24 fibers are positioned in Central loose tube made of PBT and filled with tube jelly;
Aramid yarn as strength member;
Water blocking yarn to prevent water penetration;
Steel wires or stranded steel wires as messenger to support the cable;
MDPE, HDPE or LSZH is extruded as sheath;
Structure can be customized for different Span.
Application: Self-supporting Aerial installation.
Features:
1. Provides high bandwidth and fast data transmission capacity.
2. Low signal loss and attenuation, ensuring reliable and consistent signal quality over long distances.
3. Immune to electromagnetic interference, suitable for high electrical noise environments.
4. Small size and light weight design, easier to install and handle during cabling projects.
5. Long lifespan and minimal maintenance, reducing overall operational costs. Cable Structure Design Product Parameters

Item		Value
Fiber Counts		4
Fiber Counts/ Tube		4
Tubes		1
Tube Material		PBT
Tube Filling		Thixotropic Jelly
Fiber Identification		Blue Orange Green Brown
OD of Tube		2.6±0.1 mm
Thickness of Tube		0.35±0.05 mm
Color of Tube		Natural
Water Blocking Material		Water Blocking Yarn
Peripheral Strength Member		Aramid Yarn
Cable	Thickness of sheath	Nominal 1.5 mm MDPE
	OD	5.9mm±0.5mm
Web	Width	1.5±0.5mm
	Height	1.5±0.5mm
Messenger	Material	Galvanized Steel Wire
	Diameter	1.6mm
	Thickness of sheath	Nominal 1.0mm MDPE
	OD	3.6±0.5mm
Height		13.1±1.0 mm
Weight (±10kg)		110 kg/km

Item		Value
Fiber Counts		12
Tubes		1
Fiber Counts/ Tube		12
Fiber Identification		Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube		1.90±0.1 mm
Thickness of Tube		0.30±0.05 mm
Color of Tube		White
Peripheral Strength Member		Aramid yarn
Material of Sheath		PE
Thickness of Sheath		Nominal 0.8 mm
OD of Cable		3.6±0.2 mm
Web	Width	Nominal 1.0mm
	Height	Nominal 1.5mm
Stranded Wire		0.4mm Galvanized Steel Wire *7
Thickness of Messenger Sheath		Nominal 0.6 mm
OD of Messenger Sheath		2.5±0.2mm
Weight		35 kg/km

Detailed Photos
Our Advantages ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
50 Sets of Optical Cable Testing Equipments: Packing & Shipping Drum Packing:
Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total area 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, an annual production capacity of 15 million Fiber Kilometers, own lab with advanced equipment and CNAS certification, CROFC is devoted to achieving the best solutions for customers. Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Welcome to contact for more information!
