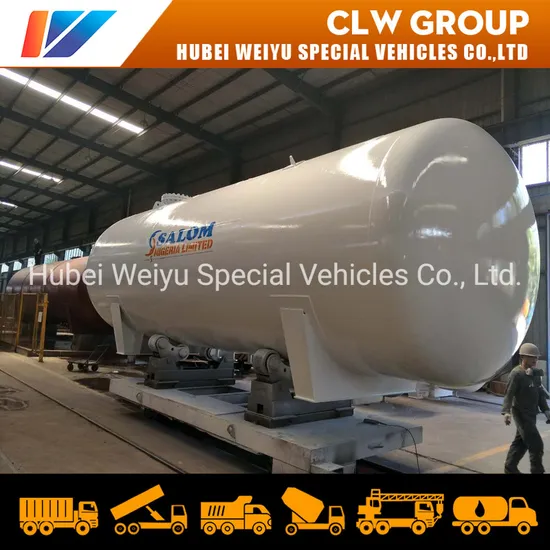

45 Cubic Meters LPG Tank 25 Metric Tons ASME Gas Tanker with Factory Price

US$10,450.00-19,470.00 1 Piece (MOQ)

Basic Info.

Model NO.
CLW1256K2LMR
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Material
Q345r
Loading Capacity
45cbm, 45000liters, 25tons, 45m3
Shell Thickness
14mm
End Thickness
16 mm
Design
1.71MPa, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Usage
LPG Gas Storage, Station Tank
Tank Weight
12750kg
Filling Weight
23940kg
Corrosion Allowance
1 mm
Tank Diameter (mm)
Dn2700
Life Time
20 Years
Logo
as Customer′s Request
Warranty
One Year
Gas Density
580kg/Cbm
Transport Package
Naked, Waxed
Specification
45cbm, 45000liters, 25tons, 45m3
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month

Product Description

45 Cubic Meters LPG Tank 25 Metric Tons ASME Gas Tanker with Factory Price
Product Description
1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc
2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
Product Specification
45 CBM LPG Tank Specifications
Volume of Tank 45 CBM
Filling Weight 19950 kg
Tank Weight 10190 kg
Thickness of Shell (mm) 12 mm
Thickness of Head (mm) 14 mm
Tank Diameter 2300 mm
Overall Size (length x width x height)
12508*2324*2917(mm)
Material of Tank Carbon Steel Q345R
Design Pressure 1.71 MPa
Hydraulic Test Pressure 2.21 Mpa
Design Temperature -20ºC~50ºC
Heat Treatment Bulk
Corrosion Allowance 1 mm
Vapor Outlet DN50
Gas Outlet DN50
Life Time 15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model Item Qty Junction Surface
A42F-25-100 Safety Valve DN100 1 RF
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-100 Stop Valve DN100 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1 /
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1 /
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

Product Diagram
Product Process
Company Introduction
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery. Certificate: ASM, ISO, BV, SGS, CCC etc. 12 independents workshops. 1000 sets of equipment, 25 assemble lines. 300 senior engineers and technicians. About 8000 workers. 800kinds of LPG, trucks and semi-trailers. 20 years wholesale experience Turnover 250 million and Export 20million annually Turnover 2 billion trucks and semi-trailers annually. LPG/Truck Sold to 90 countries Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
Overseas Exhibition and Local Support
Customer Visiting
