Henglong 16head Hlmjx-16c 1000mm Marble Granite Tiles Line Stone Polishing Machine

Product Description

Product Description

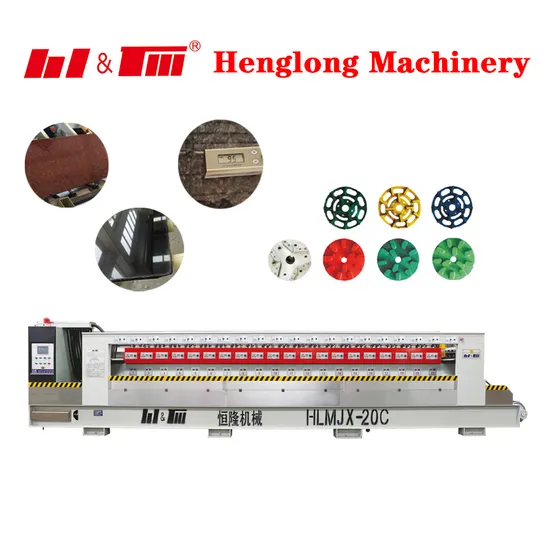

Henglong Automatic polishing machine for granite or marble slabs
HLMJx-12C~24C
1. This machine adopts foreign advance design and automatic controlling systems,combining with the demand of domestic market. It is a new intergration model og high-efficiency (about 500sqiuare meter/10h) low cost ,easy operation and durable.
2.It uses standard casting iron,steel,the brand electronic appliance,bearing and other components from Germany,Japan and Taiwan.
3. It adopts PLC control system, the operators can set the paremeter freely by the programmable controller with LCD screen. It equips with fault indicating system and alarming system abrasive consumption. The machines fits for continuous-grinding and polishing granite slabs. The conveying belt and the cross beam adopt frequency conversions for speed adjusting. Its processing width and working pressure of grinding heads can be adjusted freely (it can use resin polishing head and triangle resin abrasive material). The machine can identify the shape of the plates automatically, each disc(grinder)can resin and decend automatically by the identified shape while recording the output of grinding plate. The main spindles of the machine adopt the structure of sleeve-sliding.The whole machine is manufactured according the standardized process and it's performance is up to the domestic top level. Product Parameters

Name of Model	HLMJX-12C	HLMJX-16C	HLMJX-20C	HLMJX-24C
No. of the head	12	16	20	24
Working width	300-1050/1250mm	300-1050/1250mm	300-1050/1250mm	300-1050/1250mm
Working thickness	12-50mm	12-50mm	12-50mm	12-50mm
Spindle motor power	7.5kw*9+9kw*3	7.5kw*13+9kw*3	7.5kw*16+9kw*4	7.5kw*20+9kw*4
Total power	106kw	138kw	168kw	198kw
Water consumption	17m3/h	20m3/h	23m3/h	25m3/h
Dimension(L*W*H)	7500*2150*2200mm	8500*2150*2200mm	9500*2150*2200mm	11500*2150*2200mm
Weight	15	17t	19t	21t

Detailed Photos

Fujian Henglong Machinery Co., Ltd. was founded in 2003, the company is located in "China Stone City" Shuitou Town, Nan'an City, is an international enterprise specializing in the manufacture of stone machinery and equipment, integrating R&D, production and sales. It is one of the star enterprises in the field of stone equipment manufacturing in China.
In order to provide customers with higher performance and high added value products, Henglong has gathered a large number of Representing industry-leading engineers and skilled production teams. They are skilled and determined to make progress and research and development. The main products are HL&TM brand automatic granite polishing machine,automatic marble polishing machine, gang saw and bridge cutting machine. , multi-head calibrating machine, automatic waxing machine, automatic bush hammering machine and other stone processing equipment, and provide quality solutions. Henglong has passed the national quality system certification and the stone machinery industry standard certification. The products are exported to United States, Mexico, India, Egypt, Turkey, Vietnam, Thailand and other countries and regions, and established multi-dimensional sales at home and abroad. Channels and technical service systems are improving day by day.
