6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2

US$11,000.00
1-4 Pieces
US$10,000.00
5+ Pieces

Basic Info.

Model NO.
CLK6140D-2
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Product Name
CNC Lathe Machine
CNC
CNC Machine
Belong to
Machine Tools
Z Direction Guideway Span
320
Spindle Bore
51
Tools Size
25×25
Main Motor
5.5kw
Net Weight
1800
Max. Swing Over Bed
400
Transport Package
Plywwod
Specification
CLK6140D-2
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
1000PCS/Year

Product Description

6140 CNC Lathe Machine Cnc Machine Tools Clk6140d-2
1.Introduction and use:
Electromechanical integration with 2-shifts of high /low speed, once programming can automatically realize machining such like cylindrical,inner hole, thread, complex surface.Widely used in machinery, automobiles, motorcycles, oil pump, nozzle, chemical industry, instrument, medical and other parts of mechanical processing.
2. SPECIFICATION
CLK6140D/2 Items UNIT 750 1000
Max. swing over bed mm 400
Max. swing over cross slide mm 170(standard)/option:150( with T-slot)
End surface of standard chuck (doesn't contain claws) to enter of tailstock mm 680 1000
X/Z axis travel mm 220/550 220/860
Z direction guideway span mm 320
Spindle bore mm 51(standard manual chuck )
Code for spindle nose A2-6
Spindle nose tape No Morse 6
Spindle speed range rpm 2 shifts:80-400,400-2000
Tailstock sleeve dia. mm 55
Tailstock No MT4
Tailstock sleeve travel mm 150

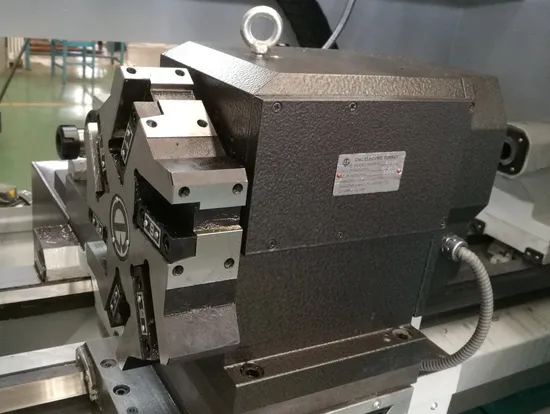

Electric tools pcs 4/6(option)
Tools Size mm 25×25
Screw pitch mm X:4;Z:6
X, z rapid feeding m/min X:6; Z:8
X/z axis smallest unit set mm 0.001
Main motor KW 5.5KW
cool pump AB-25
Cool pump motor w 90
Power form AC voltage V 3 380±10%
Frequency HZ 50±10%
Total Power capacity KVA 10
Net weight Kg 1800 1900
Overall dimension mm 2000×1100×1650 2320×1100×1650

Optional:
Contact ALLWAY MACHINERY , get more professional information!
