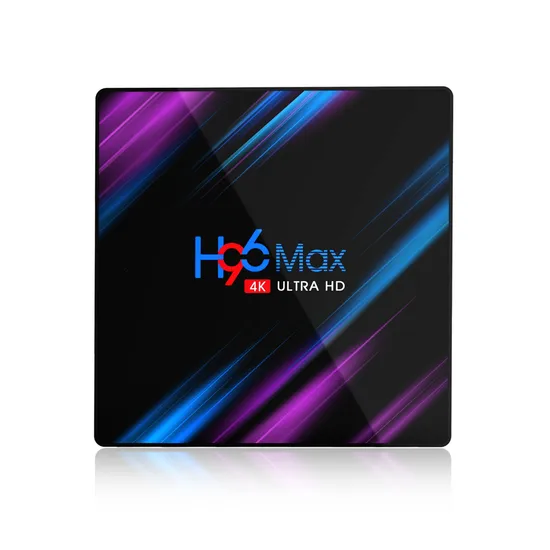

| H96 MAX Android Box |
| Hardware Specifications |
| Chipset | RK3318 Quad-Core 64bit Cortex-A53 |
| GPU | Penta-Core Mali-450 Up to 750Mhz+ |
| FLASH | EMMC 16G/32G/64G |
| SDRAM | 2GB/4GB DDR3 |
| Power Supply Specifications |
| Power Supply | DC 5V/2A |
| Power Indicator (LED) | Power ON :blue; Standby :Red |
| Main Features |
| OS | Android 10.0 |
| Support Decoder format | 4K VP9 Video decoder, H.265/H.264 video decoder
1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) |
| Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE |
| Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
| HDR | HDR10 and HLG modes |
| USB host | 1 High speed USB 3.0 ,1 USB 2.0 |
| Card reader | TF cards |
| HDD file system | FAT16/FAT32/NTFS |
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB |
| High Definition video output | 4K (4096x2160 pixel ) |
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages |
| LAN | Ethernet:10/100 standard RJ-45 |
| Wireless | WiFi 2.4G/5G |
| 2.4G/5G | Built in 2.4G /5G 802.11 a/b/g/n |
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
| HDMI | HDMI 2.0a for 4k@60Hz |
| 3D | 3D video formats |
| AV | Support |
| Software Specifications |
| Network Function | RKMC 18.1 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc |
| Other feature | Free Internet searching,thousands of android applications,many kinds of games,etc. |
| Certification | CE,FCC,ROHS |
| Accessories | Power adaptor,HDMI cable,user manual ,remote |
