| US$13,543.00 | 1 Piece (MOQ) |

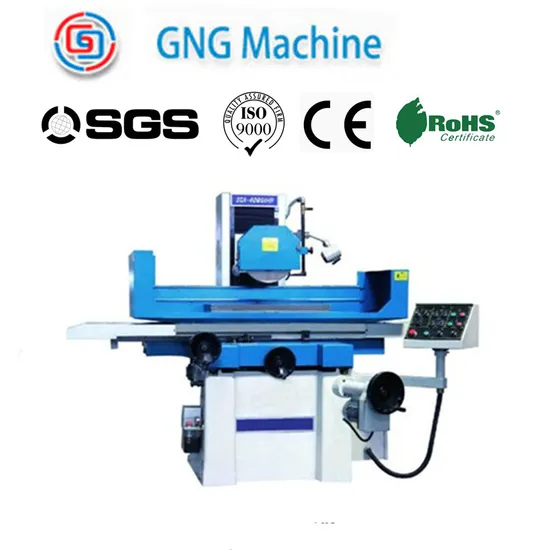

| SGA saddle moving surface grinder | |||
| Item/Model | Unit | SGA-4080AH | |
| SGA-4080AHR | |||
| SGA-4080AHD | |||
| table size(WxL) | mm | 406x813 | |
| max. longitudinal travel | mm | 910 | |
| max. cross travel | mm | 450 | |
| max. distance from spindle center to table | mm | 580 | |
| electro magnetic chuck size | mm | 400x800 | |
| speed of table longitudinal movement | m/min | 7-23 | |
| table transverse movement | auto feed | mm/min | 0.1-8 |
| rapid speed | mm/min | 990 | |
| feed of handwheel | mm/div | 0.02 | |
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) |
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) 240(only for AHD model) | |
| feed of handwheel | mm/div | 0.005 | |
| grinding wheel | speed | rpm | 1450(50Hz),1750(60Hz) |
| eize(ODxWxID) | mm | 350x40x127 | |
| spindle motor | kw | 5.5 | |
| hydranlic motor | kw | 2.2 | |
| cooling pump motor | kw | 0.125 | |
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) | |
| cross feed motor | kw | 0.04 | |
| max.loading capacity of table(include chuck) | kg | 500 | |
| total rated power | kw | 9 | |
| height of machine | mm | 1890 | |
| floor space(LxW) | mm | 3600x2400 | |
| Gross weight | kg | 3500 | |
| package dimensions(LxWxH) | mm | 2850x2270x2180 | |
