8-100 Meters Conventional Infrared Reflective Beam Smoke Detector with Reflectors

Product Description

8-100 Meters Conventional Infrared Reflective Beam Smoke Detector with Reflectors
Description:
1. AS-IRBD Conventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning. 2. The AS-IRBD has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. 3. The AS-IRBD works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke. 4. The AS-IRBD is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Features:
1. EN54-12 Compliance.
2. Hassle free alignment, built with digital guide display and laser beam pointing.
3. Employ single-ended design through reflective mirror.
4. Four ranges wide monitoring from 8-100 meters via encoder.
5. Three users programing sensitivity adjustment.
6. Built-in microprocessor.
7. Self-diagnosis function can monitor for internal faults.
8. Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter.
9. Fire and Fault interfacing relays.
10. Attractive and pleasing appearance.
11. Real User friendly alignment method.
Parameters:

Product Name	Fire Alarm Beam Smoke Detector
Operating Voltage	20V to 28VDC
Standby Current	23mA
Alarm Current	33mA
Commission Current	56mA
Beam Pathway Length	8-100 meters
Beam Path Angle	±0.4º Directional
LED Indicator Guide	Red: Fire ; Yellow: Fault ; Green: Alignment
Dimention	About L:191 x W:127 x H:92 mm
Material	ABS plastic
Standard	EN54-12:2002
Operating Temperature	-10 to +55 celsius degree
Operating Humidity	≤95% no condensing
Usage	Fire detection, smoke detection, fire alarm system
Application	Warehouse,shopping mall,exhibition hall,hotel,airport terminals etc.

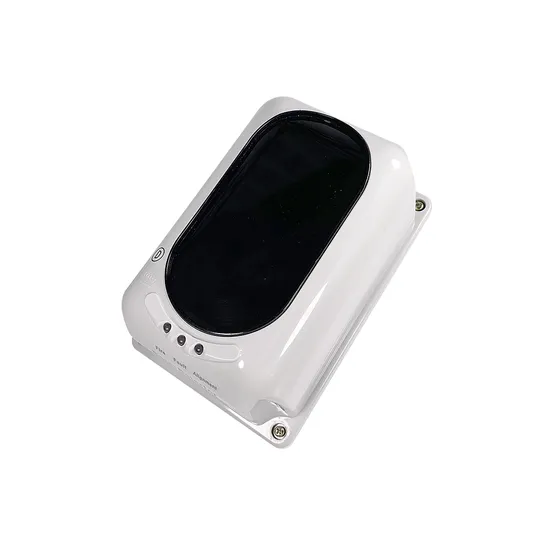

Product Appearance:
Internal Parts:
Size and Diagram:
Working Principle:
Installation Details:
Mounting of Reflector Mirror:
Wiring Terminals:
Testing Details:
