Automatic Stone Edge Profiling Machine Edge Shaping Lathe for Marble

Product Description

Product Description:
JOBORN Automatic Stone Edge Profiling Machine Edge Shaping Lathe for Marble, Stone Profiling Machinery for Granite and Marble Processing
JOBORN SQ/PC Automatic Profiling Machine. This machine automatically track model of curve(straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with curve(straight) line and craft products, uses inverter to control left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done. This machine adopts microcomputer control system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column, etc.
Processed Product:
Technical Parameter:

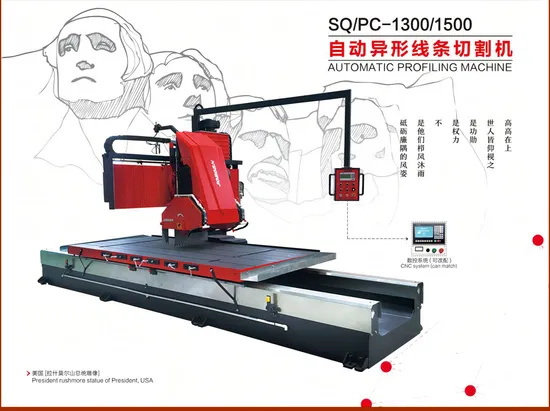

SQ/PC Automatic Profiling Machine
Appellation	Unit	SQ/PC-1300	SQ/PC-1500
Max.Diameter of saw blade	mm	Φ600
Worktable size	mm	3000x1300	3000x1500
Cutter processing range	mm	3000x1300x550	3000x1500x550
Water consumption	m³/h	6
Power of main motor	kW	15
Total power	kW	19
Dimension(LxWxH)	mm	5300x2300x2520	5300x2500x2520
Weight	kg	4300	4500

Processing Spot:
FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
