144fo Air Blown Microduct Loose Tube Fiber Optic Cable OS2 G. 657. A1 (6.4 mm) HDPE

Product Description

144FO Air Blown Microduct Loose tube Fiber Optic Cable OS2 G.657.A1(6.4 mm) HDPE

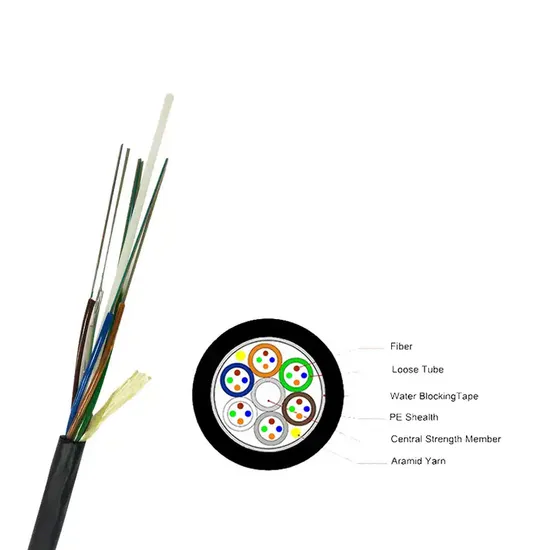

Product Description The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a HDPE sheath.

Product Features 1. Small diameter, light weight, easy to bend when laying by air blowing equipment, easy to operate;
2. All non-metal structure, no need to be grounded , low friction coefficient sheath material and structure design, long distance air blown laying;
3. Full use of pipe hole resources, construction speed is fast;
4. With the growth of communication business volume, it can be blown into optical cable in batches, and the investment is distributed to reduce the early investment;
5. It is suitable for construction in crowded MAN pipeline and avoids the destructive excavation in the past;

Detailed Photos
Product Parameters Fiber Specifications:

		G.652D	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	--
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥500MHZ·km
	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Cable performance:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GCYFY	2-60	5.0	20	1100/550	150/500	30D/15D
GCYFY	62-72	5.5	25	1100/550	150/500	30D/15D
GCYFY	74-96	6.7	32	1700/850	150/500	30D/15D

Packaging & Shipping
Customer Feedbacks
FAQ
Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!

---
