Basic Info.
Intelligent Temperature Control
Support Intelligent Temperature Control
Fan Bearing
Hydro Bearing
Multi-Angle
Without Multi-Angle
Connectors
4pin(M/F) PWM Power / 3pin Aura(M/F)
Fan Speed
800~1600 Rpm ± 10%
LED Qty / Type
Center 8PCS, Outer Ring 18PCS
Specification
360mm x 120mm x 25mm (W x H x D)
Production Capacity
400, 000 PCS/Month
Product Description

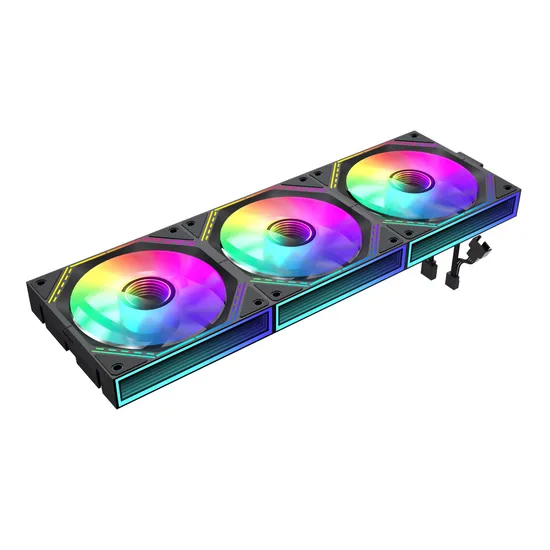

GameMax FN12A-S3I, 120mm Black frame ARGB Fan x3,120mm Computer case fan! Revolutionized daisy-chain ARGB fan.
Infinity mirror look all around. 3 pcs 120mm full function ARGB PWM fans. The intelligent temperature controls the speed at 800~1600±10% RPM, by linking to the motherboard PWM 4pin socket, so the fan speed auto controlled and keeps the fans quiet. Only one cable is required for a cluster of fans. Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity. 26 LEDs in each fan,Center 8pcs, Outer ringg 18pcs
Product Description
Specification:
| Model | FN12A-S3I |
| Fan Blades / Colour | 9 / semi-transparent white |
| LED Qty / Type | Center 8PCS,Outer ring 18PCS |
| Dimensions | 120 x 120 x 25mm |
| Bearing Type | Hydraulic Bearing |
| Fan Speed | 800~1600 rpm ± 10%
|
| Max. Air Flow | 49.54 CFM |
| Max. Static Air Pressure | 1.52mm - H2O |
| Noise Level (max.) | 31.62db(A)
|
| Cable Length | Three fans share a common set of wires,
4pin(M/F) PWM Power / 3pin Aura(M/F),600/600mm
|
| Accessories | Screws x12 |
| Connectors | 4pin(M/F) PWM Power / 3pin Aura(M/F) |
| Rated Voltage | 12V |
| Rated Current (max.) | 0.15A (Max. 0.18A) |
| Rated Input Power | 1.8W(Max. 2.16W) |
| Voltage range | 15-13.8V |
| Start Voltage | 5V |
| M.T.B.F. | 30,000hrs |
>>
