Frequency converter quantitative type PC pet plastic barrel bottle bucket 5 gallon water production line / bottling plant

Product Description

Product Description
Frequency converter quantitative type PC pet plastic barrel bottle bucket 5 gallon water production line / bottling plant
Product Description
Brief introduction :

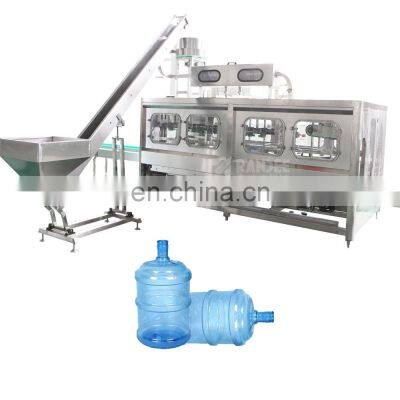

New type model QGF-300 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of automatic cap elevator, online cap washing system, machine frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, water pump controlled by frequency converter, realize stability washing effect, accurate filling capacity and perfect capping effect.

5 gallon water filling machine

QGF-300 5 Gallon / 20liter water filling line with washing system
No.	Machine name	Model	Size(mm)
1	Automatic decapper	BG-1	850x650x1800
2	Interior and exterior brushing machine	STNW-2	2210*1340*2140
3	QGF-300 main washing filling capping machine	QGF-300	5000×1580×2000
4	Light checker	DJ-1	300×700×1000
5	Shrinking machine		900x700x1200
6	Feeding conveyor belt	Plastic chain
7	Products outlet conveyor	SUS304
8	Roller conveyor	SUS304
9	Laser / ink jet printer	20W	340*220*100

Detailed Images

Automatic decaper Automatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line. It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.
	Automatic bottle interior and exterior brushing machine: Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity.
	Washing part: It has 2 rows and 9 steps washing Water amount of filing: 6T/H Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)
Filling part: Uploading and dropping barrels changed from 45 degree to translatory which is more stable. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
	Capping part: Liquid level difference is controlled in 1cm. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Light checker and steam heating shrink machine: Inspection light is used for lighting when inspect whether exist sundries in barrel. Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.
	Automatic bag packing machine: Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
	Bottle conveyor system: Including: empty feeding system, plastic chain Full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get the water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you.
Q4: Which kinds of machines included in one complete 5 gallon water production line?
A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors.
Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

---
