Efficient Ht200 Electric Pipe Tapping Machine for 4-8 Inch

Product Description

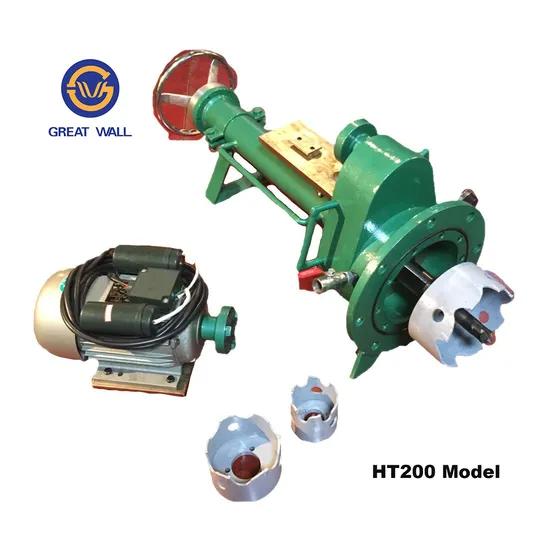

HT200 Model Electric Drive Hot Tapping Machine
Product Description
This machine is designed for hot tapping on the pipeline under pressure for the branch pipeline connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply, oil and chemical industry .
Product Features :
List of Models :

Model	Range of Hot Tapping Size	Drive Mode	Feed Mode	Feed Volume	Working Stroke	Spindle Speed	Motor Power	Motor Voltage	Tapping Time
	mm/inch			mm/r	mm	RPM	Kw	V	min
HT50	DN25-DN50 3/4''-2''	Manual	Manual	1.5	240/350	/	/	/	10-20
HT100	DN50-DN100 2''-4''	Electric	Manual	0.07-0.2	370	53	0.75	220	15-30
HT200	DN100-DN200 4''-8''	Electric	Manual	0.07-0.2	500	40	1.5	220	15-30
HT200	DN50-DN200 2''-8''	Electric	Manual	0.07-0.2	500	40	1.5	220	15-30
HT300	DN100-DN300 4''-12''	Electric	Manual	0.07-0.2	600	40	1.5	220/380	15-30
HT400	DN250-DN400 10''-16''	Electric	Manual	0.07-0.15	600/800	30	1.5	380	15-40
HT600	DN500-DN600 20''-24''	Electric	Manual/Automatic	0.3	900	30	4	380	30-60
HT800	DN500-DN800 20''-32''	Electric	Manual/Automatic	0.3	1000	20	7.5	380	40-80
HT1000	DN500-DN1000 20''-40''	Electric	Manual/Automatic	0.3	1250	20	7.5	380	120-180
HT1600	DN1000-DN1600 40''-64''	Electric	Manual/Automatic	0.15-4	1450/2000	12	15	380	120-180

Note: 1 . Range of Hot Tapping Size : 2'' to 64'' 2. Range of Working Pressure : PN10, PN16, PN25
Hot Tapping Procedure :
Hot Tapping Case :
Company Profile :
Anqing Great Wall Pipeline Company have over 10 years experience of the production and development of
Electric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16 and PN25,
the range of hot tapping sizes from DN25mm up to DN1600mm.
our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,
Taiwan, UAE, Chile, Argentina, Brazil and etc.
Hot Tapping Fitting :
Note: we supply the above hot tapping fitting as per specific dimension and pressure rating .

---
