Product Description
Product Description

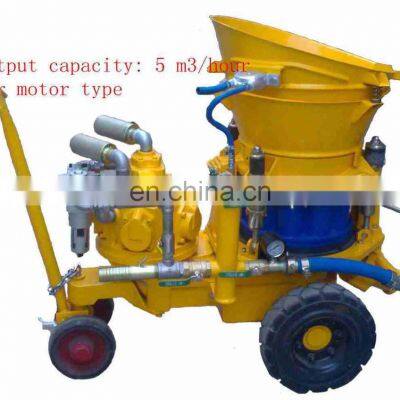

PZ-5 gunite machine Applications of gunite machine Ø Shotcrete/concrete spraying/gunite for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.Ø Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surfaceØ Refractory material spraying and repair for industrial kilns’ inner liner.
Technical parameter of gunite machine
Output
| 5.5 m3/h
|
Max. convey distance
| 200 m
|
Water cement ratio
| <0.4
|
Max. aggregate size
| 15mm
|
Hose inner size
| Φ50mm
|
Operating air pressure
| 0.2~0.6MPa
|
Air consumption
| 7~8m3/min
|
Motor power
| 5.5kw(7.5hp)
|
Basic chassis
| Options: tire , skid or rail-wheel
|
>>
