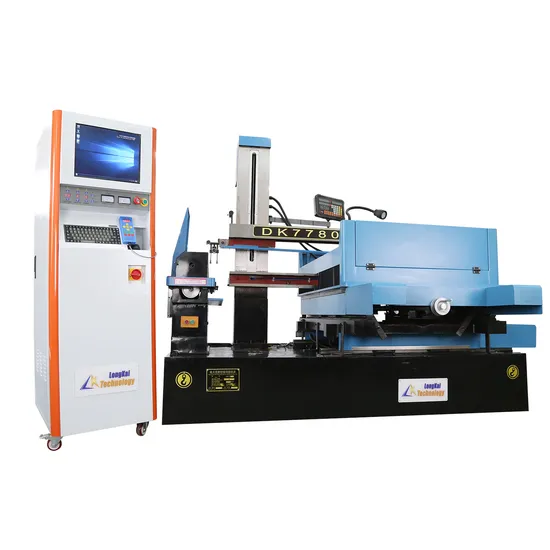

Dk7780 CNC Wire Cutting EDM Machine Best Price for High Speed

Product Description

The WEDM is composed of main machine, electrical control system, software and cooling filter system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, y, u, V and Z, among which the four axes of X, y, u and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen. Long term normal working conditions of the machine:

Working environment temperature	5~40ºC
relative humidity	≤85%
Working temperature of cooling water	≤30ºC
Power Supply	380V±5%, can make as 415V;50Hz±1Hz;Three phase alternating current

2.technical requirement

S/N	project	parameter
1	model	DK7780
2	Electrical cabinet form	Vertical cabinet (full step type)
3	Guide	Steel rail
4	Lead screw form	Ball screw
5	Xyuv motion motor form	Reactive stepping motor
6	Working mode of wire conveying motor	Frequency converter speed regulation1~12m/s
7	Machine tool protection	Environmental protection cover
8	Resolution of motion axis	0.001mm
9	Table size	420*270
10	X, y axis stroke	800X1000mm
11	U, V axis travel	±35×±35mm,(±60×±60m)
12	Machining taper / machining thickness	±6°(±15°)/80mm
13	Maximum straight cutting thickness	800mm(Z-axis manual lifting)
14	control mode	4 axis linkage
15	Maximum load capacity	1000kg
16	Maximum processing current	8A
17	Maximum machining efficiencyCr12,H=60mm	≥180 mm²/m,Aluminum cutting≥220 mm²/m
18	Surface roughness(Straight line cutting, H≤40mm)	Ra≤1.6μm
19	Cutting accuracyCr12,H=40mm	≤0.01mm
20	Radial runout of wire storage cylinder	≤0.02mm
21	Molybdenum wire diameter range	0.12~0.22mm
22	Wire storage capacity of wire storage cylinder	250m
23	Loss of molybdenum wireCr12,H=40mm	≤0.02mm
24	Cutting power supply	High frequency power supply system without resistance
25	operating system	Windows XP
26	Control system	AUTOCUT
27	communication interface	LAN,RS232,USB
28	Operation function	Drawing or CAD (DXF) drawing import
29	Volume of working tank	55L
30	Working fluid filtration mode	Filter screen filtration
31	Weight of whole machine	5000kg
32	Overall dimension of main engine	2400x2100x2300mm
33	Cabinet size	730×630×1820mm
34	Rated power of electric appliance	≤ 2.7 kW

3.List of attached accessories

S/N	Product name	Specifications	Free delivery
1	scissors	3	1
2	Hexagonal wrench	M4-M10(5)	1
3	Stiff hands	14-17	1
4	Wooden screwdriver	One type, cross type	2
5	Oil gun	Metal shell	1
6	Molybdenum wire calibrator	H80mm	1
7	Top wire wheel		1
8	Working fluid	Water working fluid, Jiarun jr3a	1
9	Electrode wire	Recommended 0.18mm molybdenum wire	500m
10	Guide wheel	Dia.49.5mm	2
11	Bearing	625ZZ	8
12	Conductive block	12mm×12mm	2
13	Reversing switch	NPN LJ186A3-8-Z BX	2
14	Silk conveyor belt	110	1

---
