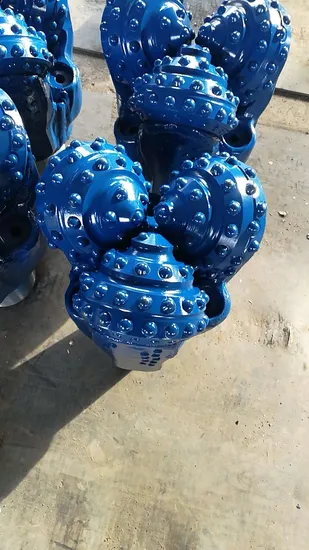

12 1/4 Tricone Concial Bit

Product Description

1. HejianHengji bits manufacture co established in 1998, located in Cangzhou which is in the industrial zone of Cangzhou city, and enjoys good location and convenient transportation. Huanyu specializes in water well drill bits, oil well drilling bits, like: Tricone Bits (Steel tooth & TCI bit), Tri-cone Bit, Three cone bit, Tricone Drill bit, tungsten cabide inserted bits, Tricone rock bit, Milled tooth bit, Roller Cone Bits, matrix body PDC bits, steel body...
2. Structure Features
1)With high precision bearings with neck to slide, two way thrust bearing; Tooth palm bearing surfact surfacing hard alloy and cone bearing with reduced after welding together gold sliver, improve the bearing capacity and resistence to bite ability.
2)The high precision metal seal, metal seal by a pair of elaborate design processing of metal sealing ring as bearing to dynamic seals, two high elastic rubber function circle, which located in the teeth palm and die as static sealing seal area, the optimization of the seal compression ensures that the two metal ring seal surface always kept in good contact.
3)Steel ball lock die, suitable for the high speed.
4)The differential pressure and prevent drilling fluid restrictions in the lubricating system all rubber oil storage sac, for bearing system provides good lubrication guarantee.
5)250. C temperature the high temperature, abrasion resistance of new grease.
6)Set the teeth bit high strength and high toughness carbide gear, optimize the design of the tooth row number gear, toothy height and unique alloy tooth shape, give full paly to the set high wear resistence and excellent teeth bit of cutting ability. Steel teeth drill tooth face apply welding new wear-resistant materials, in keep steel teeth bit high mechanical penetration rate at the same time, improve the drill bit cutting teeth life.
3. About The Tricone Bit
1) High-strength, high flexibility, high temperature, high wear resistance.
2) High-precision metal seal.
3) locking roller ball, to adapt to high-speed.
4) The use of high strength hig toughness carbide teeth.
5) Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6) cone bit to adapt to the soft, medium and hard of various strata.
7) Reasonable price and long working life.
4. Packing: Wooden box, steel box or as your requirements
5. Payment Terms
T/T and L/C are acceptable(30% advanced payment after sign the contranct, then 70% payment after see the B/L)

Model	Button/Insert Tooth Tricone Bits Steel/Milled Tooth Tricone Bits
IADC CODE	116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes:	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit
advantage	most favourable price and best qualtity
bearing type:	sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 7 days
Market	Canada, USA,Middle east ,Africa,Europe
Application	petroleum&gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

---
