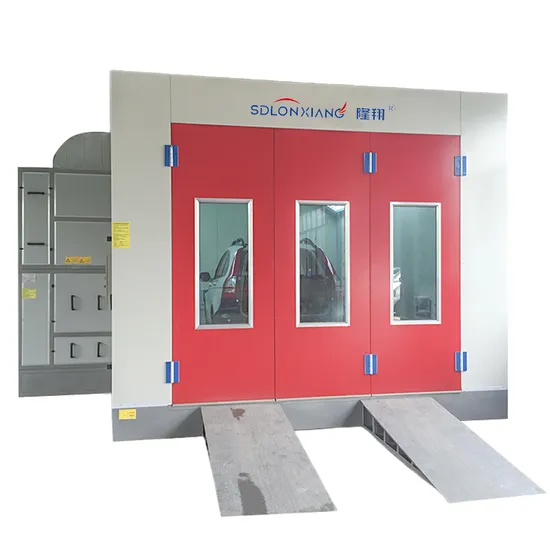

| LX4 |
| Outside size | 7000×5200×3400mm(L×W×H) |
| Inside size | 6900×3900×2650mm(L×W×H) |
| Entrance door | 3 folds,3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window |
| Emergency door | 650*2000mm(W*H),with pressure lock,with glass window,with step |
| Main System |
| Main System | Wall panel | -Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
| Basement | -Galvanized steel assemble,280mm high,quadrate steel support,3 rows of grills,2 rows of indented plates.
-2 ramps,external setting,620*2000mm(W*L)/pc |
| Ventilation system | Inlet fan | 2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set |
| Outlet fan | 1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,910mm air duct *2units,
-Elbow:90°*1 unit |
| Heating system | Burner | Italy RIELLO G10 oil burner, heating capacity: 1
00000Kcal/h, heating time:6-8 min(20-60ºC),fuel consumption is 5-8kg/vehicle,with pneumatic damper |
| Heat Exchanger | 1.2mm thickness SUS304 stainless steel |
| Cabinet | Rock wool interlayer, thermal insulation, flame retardant |
| Lighting system | Ceiling lights | 8*4pcs*16w LED lighting |
| Side lights | 8*2pcs*16w LED lighting. |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate>83% |
| Ceiling filter | EU5 grade high efficient filter,filtering rate>98% |
| Floor filter | Multi-layer fiberglass filter,filtering rate>70% |
| Control system | Control panel | Intelligent control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc |
| Total power | 12KW |
| Voltage/Frequency | 380V,50HZ,3 phase |
| |
