8mm Copper Rod Continuous Casting and Rolling Machine for Cable Industry

Product Description

Copper Rod Continuous Casting and Rolling Production Line 1. Description
This production line adopts the advanced fire refining technology to produce the φ8MM bright low-oxygen copper rod
which is meet the international standards in the continuous casting line.
The production line is composed by the melting furnace, holding furnace, five wheel continuous casting machine, rolling
shear machine, straightening machine, trimming machine, continuous rolling mill, lubrication system, cooling deoxidization
system, coiler and electrical control system etc.
The crystallization wheel adopts four sides cooling and the casting ingot is compact and uniform.
The rolling mill adopts 2 roller stand with oil and emulsion separation system. It is convenient for operation, maintenance
and has long service life.
The whole production line adopts IPC+HMI+PLC control with auto synchronization, secure storage of process data and real
time display of operating condition.
12T/H,18T/H and 25T/H are available for customer's choice.

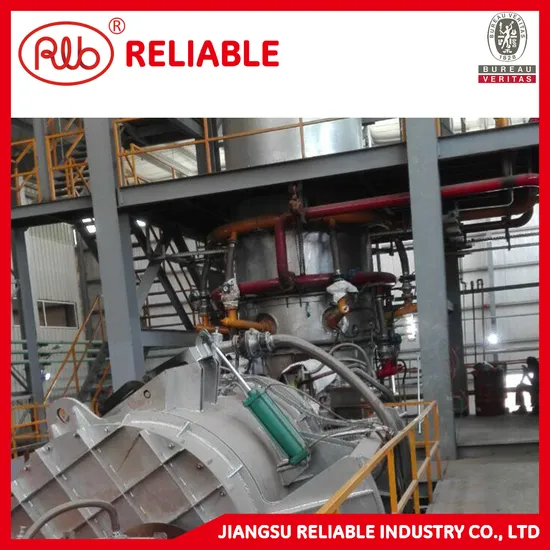

2.Equipment Pictures:
3.Technical Parameters

Type	Cu Rod Diameter	Rolling Pass	(T/H) Capacity	Rolling Mode	(T/H) Melting Furnace Output	(T) Holding Furnace Capacity	Furnace Energy
12T	8	12	12-15	2	16	10	Natural Gas
18T	8	12	18	2	20	10
25T	8	13	20-25	2	28	15

4.Layout:

---
