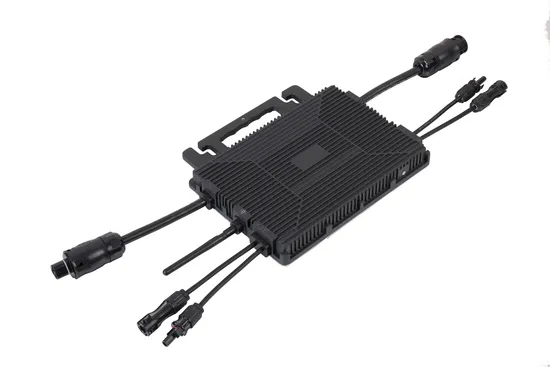

Chisage 800W Home Solar Ssystem Pure Sine Wave 10 Years Warranty PV Microinverter for Us EU Market

Product Description

800W rated output power IP67 waterproof protection with 10 years warranty microinverter, MLPE module level monitoring, built-in wifi monitoring
Product Features Specification

Technical Data
Model	Ant-800G1-US	Ant-800G1-EU
Input (DC)
Recommended Input Power (Wp)	210 to 500W+ (2 Pieces)
Max. Input DC Voltage (Vdc)	60
MPPT Voltage Range (Vdc)	25~55	20~55
Start-up Voltage (Vdc)	20
Max. Input Current (A)	13.5×2
Max. DC Short Circuit Current (A)	16.5×2
Output (AC)
Rated Output Power (W)	800
Max. Output Current (A)	4	3.5
Nominal Grid Voltage (V)	220	230
Grid Voltage Range (V)	184~253
Nominal Frequency (Hz)	60	50
Frequency Range (Hz)	55~65	45~55
Power Factor	0.99(default),-0.95(lagging),+0.95(leading)
Maximum Units per Branch	4
Efficiency
CEC Weighted Efficiency	0.955
Peak Inverter Efficiency	0.96
MPPT Track Efficiency	>99.50%
Night Time Power Consumption (mW)	<50
Mechanical Data
Operation Temperature Range (°C)	-40~65
Dimension (mm)	260Wx225Hx32D
Weight (kg)	2.9
Cooling	Natural cooling
Noise (dB)	<15
Protection Degree	IP67
General
Display	LED, APP
Communication	Built-in Wifi
Compliance	IEC 62109,IEC 61000,VDE4105
Warranty	10 years

Why Choose Us individual MPPT tracking, cost-effective easy operation, remote wifi monitor, high reliability and effciency up to 96%, suupport parallel operation
FAQ ·Q1: Are you a factory or trading company? We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers. ·Q2: What is the MOQ? The MOQ is 1 unit, and for items in stock, we will ship within 7 business days. ·Q3: Do you accept custom products? Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc. ·Q4: What is your after-sales service? a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support. ·Q5: What's the payment term? We support a variety of payment methods, such as T/T, L/C, ****** Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

---
