Tool Milling Machine Um400b Universal Milling Machine for Sale

US$13,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
UM400B
Type
Tool Milling Machine
Object
Tool
Structure
Lifts
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size Horizontal
400X800mm
Table Size Vertical
250X950 mm
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L & T
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 PC/Month

Product Description

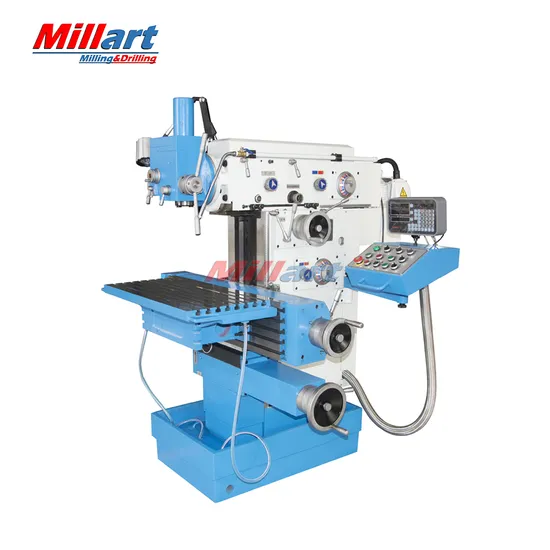

Tool Milling Machine UM400B Universal Milling Machine For Sale
Feature:
This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
1. Original structure, broad versatility, high accuracy, easy to operate.
2. With various attachments to extend range of application and raise utilization.
3. Model XS8140A: with Programmable digital display system, resolving power is up to 0.01mm.
Technical parameter:
Model UM400B
Table Horizontal table size 400*800mm
Vertical table size 250*950mm
Travel X,Y,Z axis 500/350/400
Universal table Horizontal swivel ±360°
Vertical swivel ±30°
Front and back swivel ±30°
Vertical mill head Spindle travel 60mm
Spindle swivel ±90°
Horizontal spindle Taper ISO 40
Spindle line to ground 1330mm
Min distance from spindle line to table 35mm
Vertical spindle Taper ISO 40
Min distance from spindle nose to table 5mm
Spindle speed (Vertical and horizontal) 18steps 40-2000RPM
Feed rate 18steps 10-500mm/min
Vertical spindle feed rate 3steps 0.03-0.12mm/rev
Main motor and feed motor power 3KW/1.5KW
Work table max load and tools max load 400KG/500KG
Dimensions 182*164*171CM
Net weight 2200KG

Standard accessories:
Complete tools -with the machine 1 set
Milling cutter arbors and washers 1 set each
Reducing sleeves 1pcs each
Spring collets and collet chuck 2/3/4/5/6/8/10/12mm 1pcs each
Universal angular table

Optional accessories:
F11-125A Dividing head
QH125 Vice
TSL250 Rotary table
QH160 Vice
TSL320 Rotary table
3 Axis DRO
Ball lead screw
