ISO 13426 geocells tensile strength breaking force testing machine

Product Details

Product Description

Product Description

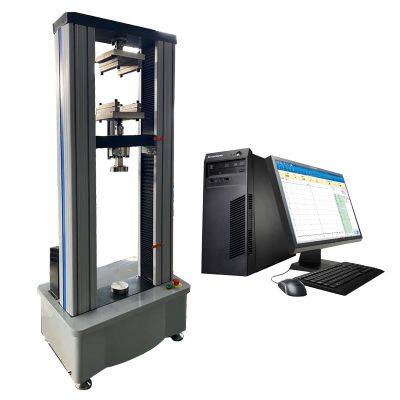

Geocells Tensile Testing Machine (ISO 13426 Compliant)Model: WT-GEO13426 | Capacity: 50kN / 100kN
Ensure precise and reliable tensile strength testing for geocell materials with our Geocells Tensile Testing Machine, specifically designed in compliance with ISO 13426-1 and ISO 13426-2 standards. Ideal for quality control, research, and third-party material testing, this system delivers consistent results for both individual geocell strips and junctions.
🔧 Key FeaturesISO 13426 Compliant: Supports both tensile strength and junction strength testing of geocells.
High-Precision Load Cell: Accuracy up to ±0.5% FS ensures reliable test results.
Wide Speed Range: Adjustable crosshead speed from 0.01 to 500 mm/min.
Custom Fixtures: Includes specialized clamps for geocell strips and welded junctions.
User-Friendly Software: Real-time graphing, automatic data acquisition, and detailed report generation.
Robust Frame Design: Rigid dual-column structure ensures stability during high-force tests.
📊 Test CapabilitiesMaximum Tensile Load
Junction Strength (weld or bond area)
Elongation at Break
Load vs. Extension Curve
Peak Load and Displacement
🧪 Typical Test SamplesMaterial: HDPE, PP, or other polymer-based geocells
Specimen Size: Strip width: 100–150 mm; length: as per standard or customized
Junction Types: Ultrasonic welds, adhesive bonds, thermal bonding
📦 Technical SpecificationsParameterValue

Load Capacity	50kN / 100kN
Load Cell Accuracy	±0.5% FS
Crosshead Speed Range	0.01–500 mm/min
Displacement Resolution	0.01 mm
Grip Type	Customized flat clamps
Test Standard Support	ISO 13426-1, ISO 13426-2
Software Features	Graphs, calculations, reports

✅ ApplicationsGeocell manufacturing & R&D
Civil engineering testing labs
Road and railway construction materials QC
Third-party inspection & certification services
🔄 Optional AccessoriesEnvironmental chamber for temperature-controlled testing
High-speed data capture module
Video extensometer for non-contact elongation measurement
📞 Contact Us for a QuoteLet our experts recommend the right configuration for your testing needs. We offer customized fixtures, multilingual support, and global delivery.
📧 Email: sophie.guojl@hotmail.com
🌐 Website:
📞 Phone: +86-18615632092
