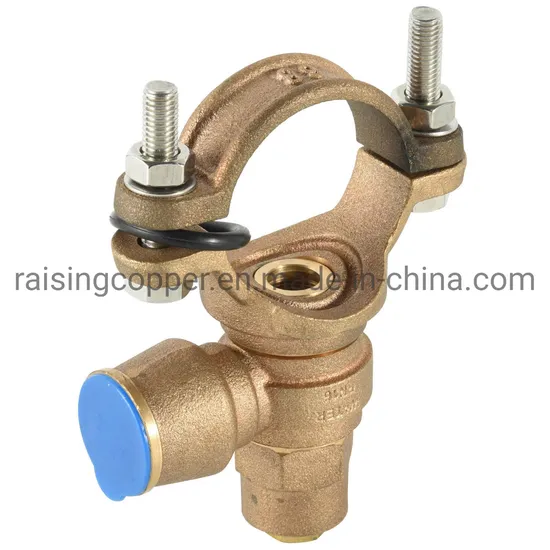

Gunmetal Pushfit Self Tapping Ferrule Straps with Grip Ring

Product Description

Product Description Gunmetal self-tapping ferrule with pushfit end
Push Fit Gunmetal Self-Tapping Ferrule Straps
110-118MM self-tapping ferrule straps 165-173MM self-tapping ferrule strapsSelf Tapping ferrule straps with top and bottom half made of cast gunmetal to BS1400 LG2 cast,with A2 grade stainless steel bolts and M12 nuts and EPDM rubber O ring seal under Boss.Top and bottom half to fit UPVC water mains with outside diameter 110/118 and 165/173mm,Ferrule stem in Bronze with integral aluminium bronze or stainless steel cutter,Acetal Banjo with 20 or 25mm push fit connection for HDPE pipe.Acetal top and EPDM sealing washers.
Material:
Bronze Top saddle, bottom saddle, stainless steel bolts, nuts and washers and NBR or EPDM o-ring.
Bronze can be C83600,LG2, B62 and C84400,etc.
Testing Pressure:100% tested with 0.6MPa - 0.8MPa by air.
Simple and quick installation can be made dry or under pressure
technical specification:
working pressure: 16bar (1.6mpa)
tested pressure: 24bars (2.4mpa)
we are in a position to accept order against customer's samples, specify design, specification.

Material	Bronze ,gunmetal C83600
Surface	Bronze color
Size	1/2" To 2"
Testing Pressure	100% tested with 0.6MPa - 0.8MPa by air.
Suitable medium	Water, no-causticity liquid, and gas
Working temperature	-20 to 120° C
Thread	Compression end and BSP & NPT Female x female or MalexM,FxM for selecting
Samples Time	1) 2 days - For our existing samples for reference 2) 30 days - If new size, need make the new mould
OEM Acceptable	Yes
Production Capacity	50000pcs each month
Packing Details	Poly bag, inner box, out carton and pallet.
Payment Term	T/T ,L/C,WESTERN UNION
Delivery Time	30 days to 40 days after confirming all details
Minimum Order Quantity	500-2000 Pieces

---
