Product Description
Product Description

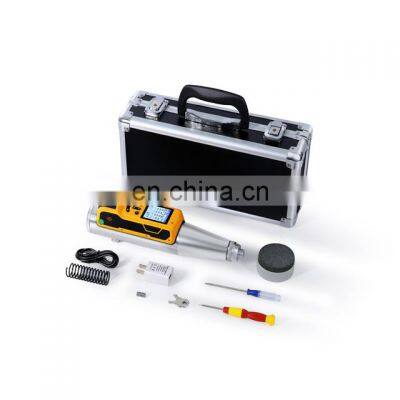

Product DescriptionTEM-912 digital rebound hammer, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence. Standard impact energy 2.207J Rigidity of tension spring 785.0±40.0(N/m) Pointer length: 20.0±0.2(mm) Pointer friction 0.65±0.15(N) Working length of bounce tension spring 61.5.0±0.3(mm) Spherical radius of the end of the bounce rod 25±1.0(mm) Features1) Automatically display and record the rebound value, and calculate the converted strength value of each measurement area and theestimated strength of the component according to the relevant testing specifications; 2) 2.0-inch color LCD screen (220×176 pixels), the detection data can be clearly seen in any situation; 3) The color digital module and mechanical rebound meter can be disassembled at will; 4)Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined and elegant design, smile lookand feel; 5) Support display in English;Detailed ImagesApplication rangeUsed for non-breakage detection of ordinary concrete compressive strength rebound method in structural engineering;Related ProductsPacking&ShippingSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.After Sales Service18 Months WarrantyOnline serviceProfessional engineer teamAt your service 24 hours
>>
