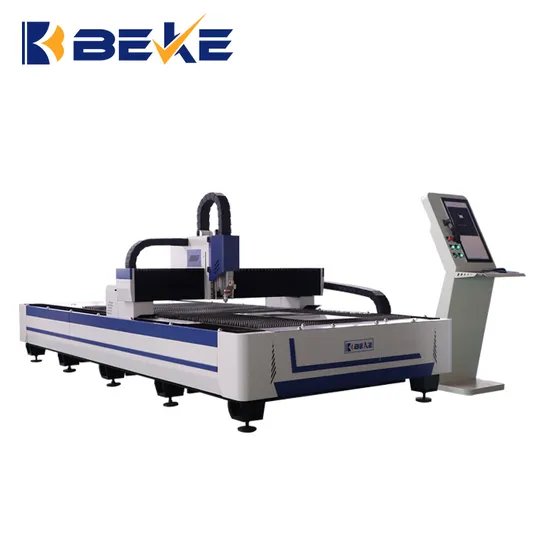

CNC Meatal Fiber Laser Cutter Machine for 3000mm Length Aluminum Steel Sheet Cutting

US$22,000.00
1 set
US$21,800.00
2+ set

Basic Info.

Model NO.
BK-3015/2000W
Application
Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Laser Type
Fiber Laser
Cooling Method
Water-Cooling
Standard Output Power
2000W
Effective Cutting Range
3000mm*1500mm
Rated Power Consumption
2kw
Cuttable Material
Stainless Steel, Carbon Steel, Aluminum, Copper
Workbench Mechanical Precision
+/- 0.03mm/M
Repeatability
+/- 0.02mm/M
Iaser Repetition Rate
Cw
Laser Wawelength
1070nm
Transport Package
Container Directly
Specification
4800*2200*1800
Trademark
BEKE
Origin
China
HS Code
8456110090
Production Capacity
50 Set/Month

Packaging & Delivery

Package Size
4800.00cm * 2200.00cm * 1800.00cm
Package Gross Weight
2800.000kg

Product Description

Product Description
Product Parameters
ITEMS VALUE
Model BK-2000W-3015
Laser Type Fiber Laser
Laser working medium YVO4
Laser wavelength 1070nm
Rated output power 2000W
Beam quality <0.373mrad
Effective cutting range 3000×1500mm
Axial positioning accuracy of workbench ≤±0.03mm/m
Table repeat positioning accuracy ±0.02mm
Maximum positioning speed 120m/min
The maximum load of the workbench ≥1500KG
Number of phases 3
Power supply rated voltage 380V
Frequency 50Hz
Overall power protection level IP54

Main Configuration
No. Item Model Brand
1 Fiber laser cutting machine BK-3015/2000W
 BEKE technology
2 Cutting head OSPR
 China
3 Laser MAX Shenzhen, China
4 Servo drive and motor Fuji Taiwan/Shenzhen
5 Special CNC cutting system BEKE customized China
6 Laser specific chiller Hanli/Tongfei China
7 Pneumatic components SMC
 Taiwan, Japan, etc
8 Proximity switch, etc Schneder France/Japan/China
9 Precision rack ROR Germany
10 Reducer Modori France
