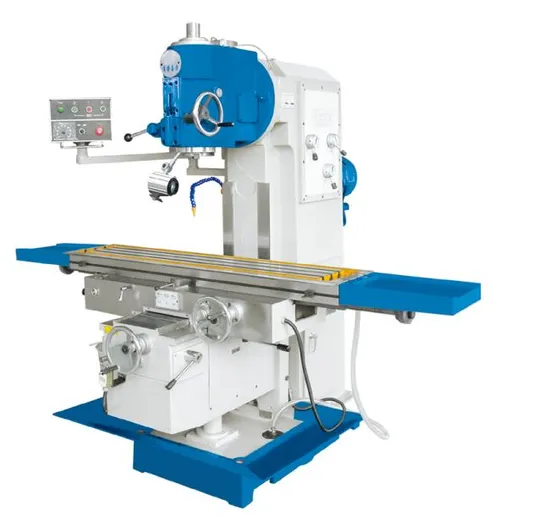

Universal Knee-Type Vertical Milling Machine XL5036c/XL5036cl

Product Description

Vertical Milling Machine XL5036C/XL5036CL
Specification:

Model No.	XL5036C	XL5036CL
Item No.
Specifications
Table size	1325X360 mm	1600X360 mm
T-slots( NOWidth/Pitch)	3/18/80	3/18/80
Longitudinal travel	1100 mm	1300 mm
Cross travel	320 mm	320 mm
Vertical travel	450 mm	450 mm
Table feed (X/Y/Z)	30-750/20-500/15-375 8steps mm/min	30-750/20-500/15-375 8steps mm/min
Vertical travel(manual/auto)	1200/800/600 mm/min	1200/800/600 mm/min
Table rapid speed ( X/Y/Z )	X:2300,Y:1540,Z:770 mm/min	X:2300,Y:1540,Z:770 mm/min
Spindle
Spindle taper	7:24 ISO50	7:24 ISO50
Spindle speed range	50-1475 r.p.m	50-1475 r.p.m
Spindle speed step	12 steps	12 steps
Spindle travel	70 mm	70 mm
Max. swivel angle of vertical milling head	±30°	±30°
Distance tetween spindle nose and table surface	50-500 mm	50-500 mm
Distance between spindle axis and column guideway	378 mm	378 mm
Other
Torque of X/YIZ axis AC servo motor	15 N.m	15 N.m
Main motor Power	5.5 kw	5.5 kw
Overall dimensions(Lx W x H)	2245x2100x2150 mm	2520x2100x2150 mm
Net weight	2900 kg	3000 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
