Standard Export Wooden Box Thermoplastic Plastic Basin Injection Moulding Machine

Product Description

Standard Export Wooden Box Thermoplastic Plastic Basin Injection Moulding Machine
Product Description

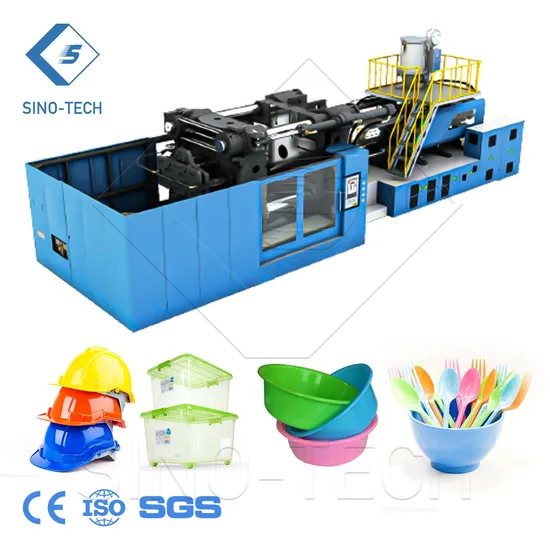

SINO-TECH ST-750A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-750A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3. Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
Product Parameters

ITEM	UNIT	ST-750A
INJECTION UNIT
SCREW DIAMETER	mm	90	95	105
SCREW L/D RATIO	L/D	23.2	22	19.9
THEORETICAL SHOT VOLUME	cm³	2861	3188	3894
SHOT WEIGHT99(PS)	g	2603	2901	3543
INJECTION PRESSURE	Mpa	195	175	143
THEORETICAINIECTION RATE(PS)	G/s	560	610	700
PLASTICISING CAPACITY	G/s	85	100	110
SCREW TORQUE	N.m	7180
MAX.SCREW ROTATE SPEED	R/min	130
INJECTION STROKE	mm	450
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	750
MAX.OPENING STROKE	mm	950
SPACE BETWEEN TIE BARS	mm	950*950
MOULD HEIGHT	mm	400-960
MAX DAYLIGHT	mm	1910
EJECTOR FORCE	KN	200
EJECTOR STROKE	mm	280
EJECTOR QUANTITY		17
OTHER
PUMP MOTOR POWER	KW	67
PUMP PRESSURE	MPa	16
HEATING POWER	KW	46.45
HEATING ZONE		6
SIZE	m	10.1*2.6*2.8
NET WEIGHT	t	40
OIL TANK CAPACITY	L	1500
INTERNATIONAL DESIGNATION		7500-5580

Seller Recommendation

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
