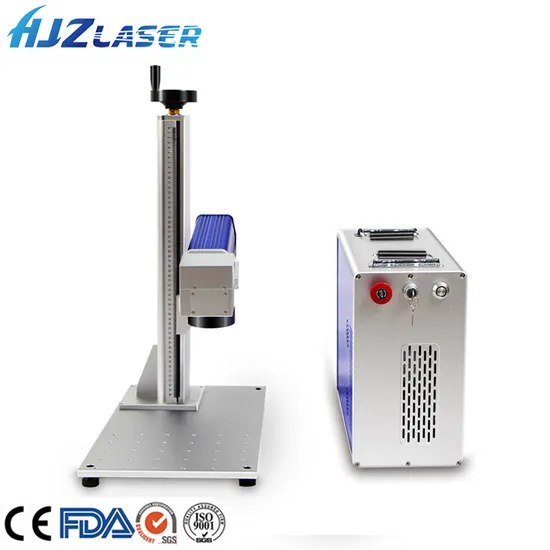

20W 30W 50W Split Fiber Laser Marking Engraving Machine

US$2,200.00-3,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HJZ-DB-01
Laser Visibility
Visible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Fiber Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Terms
Technical Parameters
Process Material
Metal and Some Non-Metal
Certification
CE.FDA, SGS
Package
Standard Crate for Export
Working Power
220V/50Hz/1.5kVA
Engraving Speed
9000mm/S
Delivery Time
1-3 Days
Marking Varieties
Characters, Graphs, Images, Trademarks
Lifespan
Over 100, 000 Hours
Cooling
Air Cooling
Marking Size
110*110mm, 175*175mm, 220*220mm, 300*300mm
Laser Output Power
10 W 20W 30W 50W 100W
Operating Voltage
110-240V
Graphic Format Supported
Ai, BMP, Dst, Dwg, Dxf, Dxp
Transport Package
Standard Plywood Packing for Export
Specification
1650X1250X1050MM
Trademark
HZJ
Origin
Wuhan, China
HS Code
84561000
Production Capacity
500/Month

Product Description


20W 30W 50W Fiber Laser Engraving Machine/ Mini Jewelry Laser Marker for Sale End of Year

Technical Data :
Model No HJZ-DB01 HJZ-DB02 HJZ-DB03 HJZ-DB04
Laser Source Raycus , IPG , Max
IPG Series Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation Pulsed
Polarization random
Nominal average output power 10W - 30W
10W - 50W
Central emission wavelength 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V
Max. Power consumption 600W
Net Dimensions 70*20*50cm 58*22*50cm 80*38*72cm 143*62*101cm
Net Weight 44 kgs 53 kgs 130 kgs
Gross Weight 60 kgs 70 kgs 200 kgs
Laser system
Scanning Speed 0-7000mm/s
Marking Speed 0-5000mm/s
Marking size 110mm×110mm (F-theta 160)
Spot size ≤ 40 micron (F-theta 160)
Cooling unit Air cooled
Pilot laser 650nm diode laser, visible red light for marking guide
Continuous working time ≥16h
Humidity 45~85% (no condensation)
Operating temperature 0~40ºC
Control units Laser Mark (English Version)

FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Our certificate, CE,BV,FDA,SGS
