GYFTY All Dielectric Outdoor Communication Duct Installation Fiber Optic Cable

Product Description

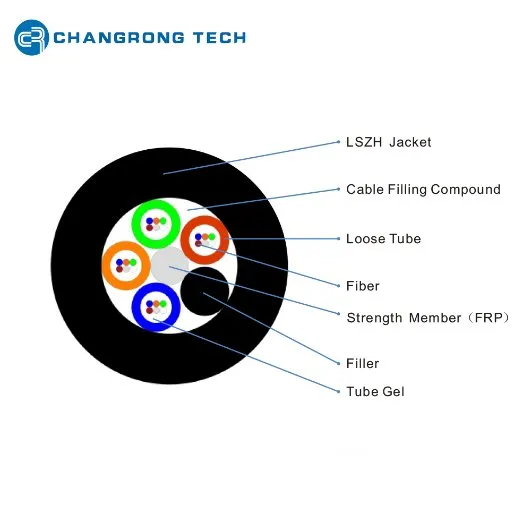

Cross Section
Detailed Photos

Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Then the cable core is filled with the cable jelly to protect it from water penetration. Finally a PE jacket is extruded.

•Good mechanical and thermal performance
•FRP as the central strength member
•Hydrolysis resistant loose tube
•Tube filling gel ensures critical protection of fiber
•Stranded compact structure eliminating contraction of tubes
•Rugged, durable PE jacket protects against UV radiation, fungus etc.
•Non metallic, light in weight, convenient for application with power lines and lightning-prone area.

Application
Duct / Non Self-supporting Aerial Installation

Product Parameters

Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter(mm)	9.8	9.8	10.7	10.7	12.0	13.4	14.9	15.3	17.3
Weight(Kg/km)	78	78	93	93	117	146	180	185	240
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength(N)	Long/Short Term:600/1500
Crush Resistance(N/100mm)	Long/Short Term:300/1000
Bending Radius(mm)	Static/Dynamic:12.5D/25D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Our Advantages

Packaging & Shipping

FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;


8.What is your payment way?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

---
